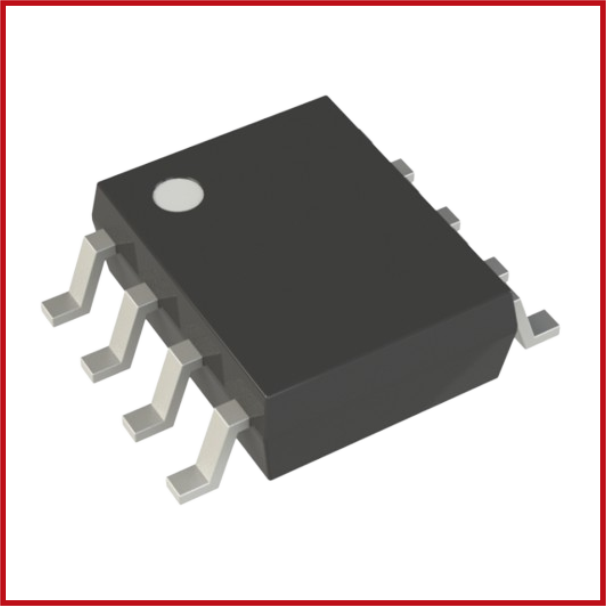

Rotary SMD Sensor 306DEG MLX90316KDC-BDG-100-RE
SKU: SEN-0007-H11
Sold by Select Automation
Final price R 190.45
R 165.61 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MLX90316 is a Tria⊗is® Rotary Position Sensor that measures the absolute angular position of a tiny dipole magnet revolving above the device surface (end-of shaft magnet).
The monolithic device measures the horizontal component of the applied magnetics flux density in a contactless manner using an Integrated Magneto-Concentrator (IMC) on its surface.
When this unique sensing approach is applied to a rotary position sensor, the angular position becomes impressively resilient despite mechanical (airgap, off-axis) tolerances.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
For Measuring: Rotary Position.
Technology: Hall Effect.
Rotation Angle - Electrical, Mechanical: 0° ~ 360°, Continuous.
Output: SPI.
Actuator Type: External Magnet, Not Included.
Linearity: ±1°.
Voltage – Supply: 4.5V ~ 5.5V.
Mounting Type: Surface Mount.
Termination Style: Gull Wing.
Operating Temperature: -40°C ~ 125°C.
Package / Case: 8-SOIC (0.154", 3.90mm Width).
Supplier Device Package: 8-SOIC.
