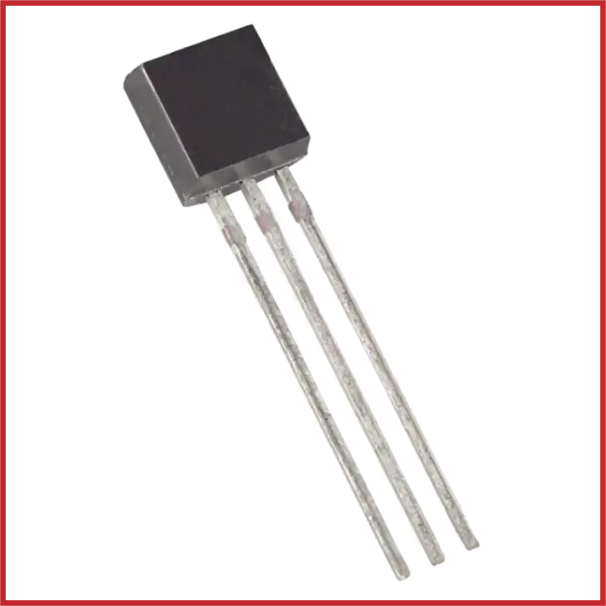

DIP DS18B20 TO-92 Temperature Sensor
SKU: SEN-0009-H11
Sold by Select Automation
Final price R 15.74
R 13.69 excl. VAT
Availability: In Stock (12 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The DS18B20 digital thermometer measures temperatures from 9 to 12 bits in Celsius and includes an alert feature with non-volatile, user-programmable upper and lower trigger points.
The DS18B20 communicates with a central CPU via a 1-Wire bus, which requires only one data line (and a ground).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage – Supply: 3 V ~ 5.5 V.
Test Condition: -10°C ~ 85°C (-55°C ~ 125°C).
Supplier Device Package: TO-92-3.
Sensor Type: Digital, Local.
Sensing Temperature – Local: -55°C ~ 125°C.
Resolution: 11 b.
Packaging: Bulk.
Package / Case: TO-226-3, TO-92-3 (TO-226AA).
Output Type: 1-Wire®.
Operating Temperature: -55°C ~ 125°C.
Mounting Type: Through Hole.
Moisture Sensitivity Level (MSL): 1 (Unlimited).
Lead Free Status / RoHS Status: Contains lead / RoHS non-compliant.
Features: Output Switch, Programmable Limit, Programmable Resolution.
Accuracy - Highest (Lowest): ±0.5°C (±2°C).
