801S vibration sensor
SKU: SEN-0010-H11
Sold by Select Automation
Final price R 49.40
R 42.96 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 801S Vibration Sensor Module is a small sensor designed to detect vibration, shock, and movement in electronic and automation applications.
It has an adjustable sensitivity potentiometer and a digital output for simple integration with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms.
The module has an LM393 comparator to ensure reliable signal processing and LED indications for power and output status.
It's ideal for security systems, vibration monitoring, indu
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Sensor Type: Vibration/Shock Sensor.

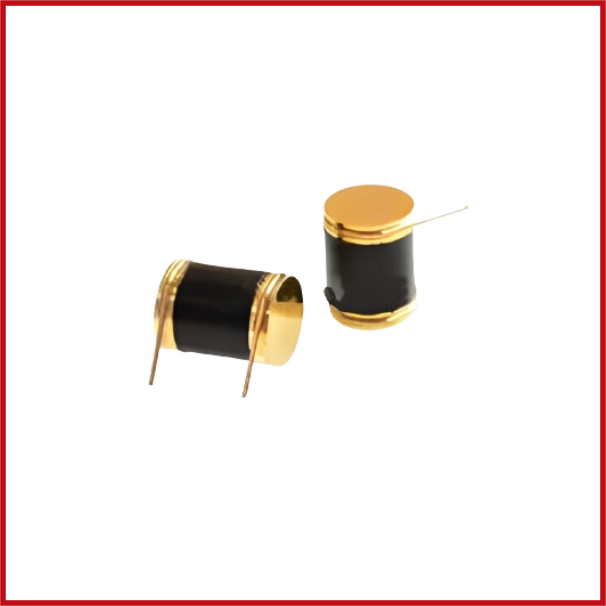

Sensor Element: 801S Spring Vibration Sensor.
Comparator IC: LM393.
Operating Voltage: 3.3–5 V DC.
Operating Current: ≤15 mA.
Output Type: Digital (DO).
Sensitivity Adjustment: Onboard Potentiometer.
Status Indicators: Power LED and Output LED.
Response Time: <10 ms.
Interface: 3-Pin (VCC, GND, DO).
Operating Temperature: -20°C to 70°C.
Storage Temperature: -40°C to 85°C.
Mounting Holes: 2.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32, AVR, PIC and other microcontrollers.
