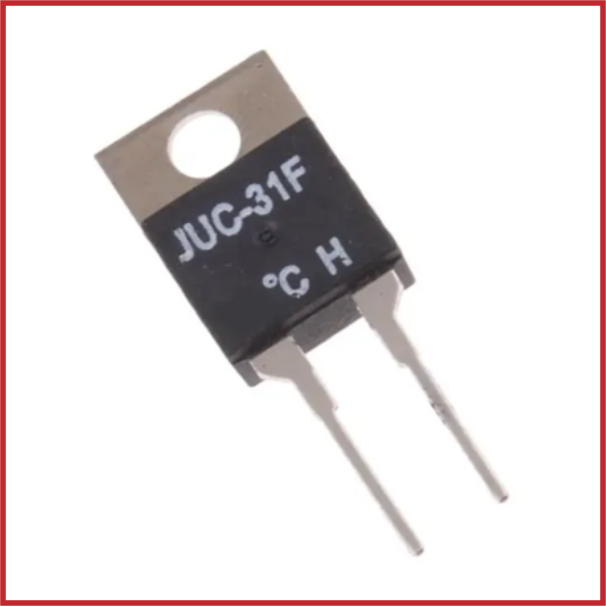

THERMOSTAT TO220 105-Dc N.O. JUC-31F-105-H
SKU: SEN-0014-H11
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The JUC-31F-105-H is a normally open (N.O.) snap-action bimetallic thermostat/thermal switch intended for temperature detection and thermal protection.
It employs a bimetal disk that changes its contact state when the specified temperature is met.
The TO-220-compatible package is intended for PCB attachment and can be used for surface or air temperature sensing, including applications that involve heat sinks.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Bimetallic Thermostat / Thermal Cut-Out.
Contact Configuration: Normally Open (N.O.).
Contact Type: SPST.
Nominal Switching Temperature: 105°C.
Temperature Tolerance: ±5°C.
Reset Type: Automatic / Snap Action.
Package: TO-220 compatible.
Operating Principle: Bimetallic disc.
Rated Voltage: 220 V AC.
Electrical Life: Approximately 100,000 cycles.
Mounting: PCB / surface sensing.
Applications: PCB thermal protection, heat sinks, power supplies, chargers, heating equipment, electronic appliances, temperature control and thermal overload protection.
