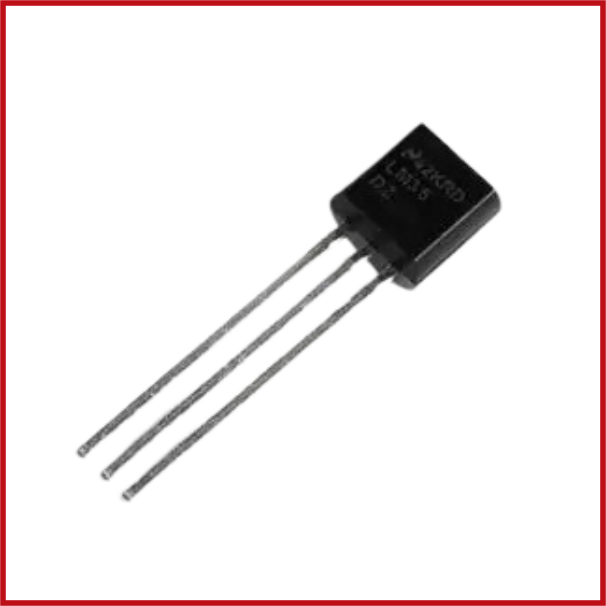

LM35 TEMPERATURE SENSOR
SKU: SEN-0016-H11
Sold by Select Automation
Final price R 37.92
R 32.97 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The LM35 Temperature Sensor is a precision analogue temperature sensor that outputs a voltage that is proportional to the measured temperature in degrees Celsius.
For basic applications, no external signal filtering is required, and it can be connected directly to an Arduino or other microcontroller's analogue input.
Its compact TO-92 packaging makes it ideal for PCB installation and temperature monitoring applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Analog Temperature Sensor.
Sensor Type: Precision Analog Temperature Sensor.
Package: TO-92.
Output Type: Analog Voltage.
Temperature Scale: Celsius.
Sensitivity: 10 mV/°C.
Accuracy: ±0.5°C at 25°C.
Temperature Range: -55°C to +150°C.
Operating Voltage: 4–30 V DC.
Low-Current Operation: 60 µA.
Output Impedance: Low.
Interface: VCC / GND / VOUT.
Number of Pins: 3.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi and other microcontroller systems with analogue inputs.
Applications: Temperature monitoring, environmental sensing, electronic equipment, battery monitoring, HVAC systems, Arduino projects, IoT and DIY electronics.
