Ventilated Shelves, SHC, 25x709x756mm, Zinc Plated, Mild Steel
SKU: SHC0808
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

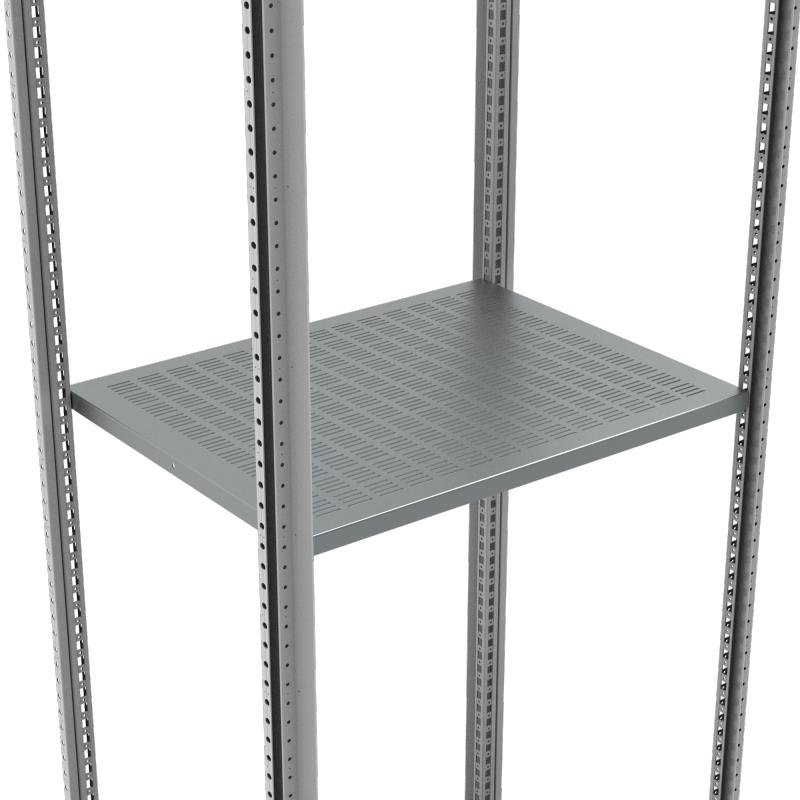

The SHC0808 nVent Hoffman Ventilated Shelves are made to offer a sturdy and movable way to place bulky parts in enclosures that are free-standing.
These shelves are made of mild steel with a zinc plating, which provides exceptional corrosion resistance and durability. To guarantee enough air circulation within the enclosure and lower the possibility of hot spots, the design incorporates ventilation apertures.
The shelf's height adjustment feature gives components—like transformers—more mounting options for those that can't be fixed vertically.
This makes it a necessary add-on for maximizing enclosure interior design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: SHC0808.
Material: Mild Steel.
Finish: Zinc Plated.
Dimensions: 25 x 709 x 756 mm (0.98 x 27.91 x 29.76 inches).
Thickness: 2 mm (14 gauge).
Weight: 7.71 kg (17 lbs).
Package Quantity: 1 shelf with mounting accessories.
Mounting: Adjustable in height, mounted directly onto the enclosure’s frame.
Maximum Load: 500 N.
