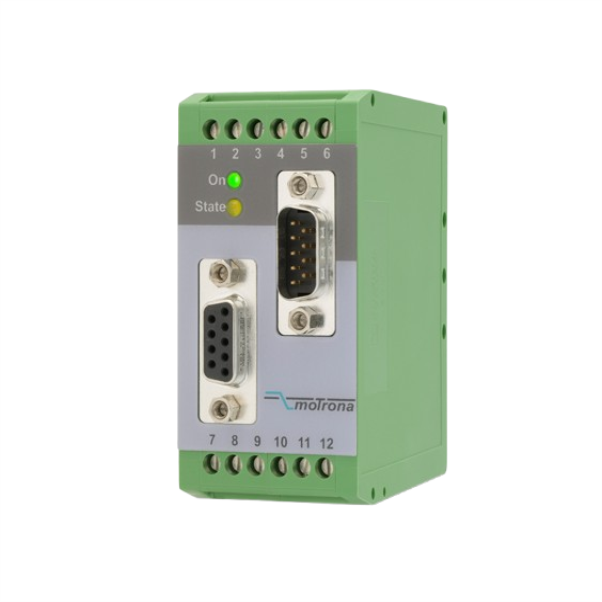

SinCos Interpolator with Incremental Output (HTL - RS422) SI251
SKU: SI251
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The purpose of the Motrona SI251 SinCos Interpolator is to transform sine-cosine signals from measurement devices and encoders into incremental pulse signals.
It is extremely adaptable for a range of applications because to its customizable multiplication and division rates.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Encoder Input: SIN+, SIN-, COS+, COS-, REF+ (Reference Pulse), REF- [1 Vss].
Control Input: Error Release for PNP signals [10 ... 30 VDC].
Input Frequency: Up to 400 kHz.
Pulse Output: A, /A, B, /B, Z, /Z (RS422) and A, B, Z (HTL).
Output Frequency: Up to 100 kHz (HTL), up to 4 MHz (RS422).
Control Output: Error with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Power Supply: 18 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
Adjustable Multiplier: Interpolation rates from 1:5 to 1:50.
Adjustable Divider: 1:1 to 1:128 to reduce the output frequency.
