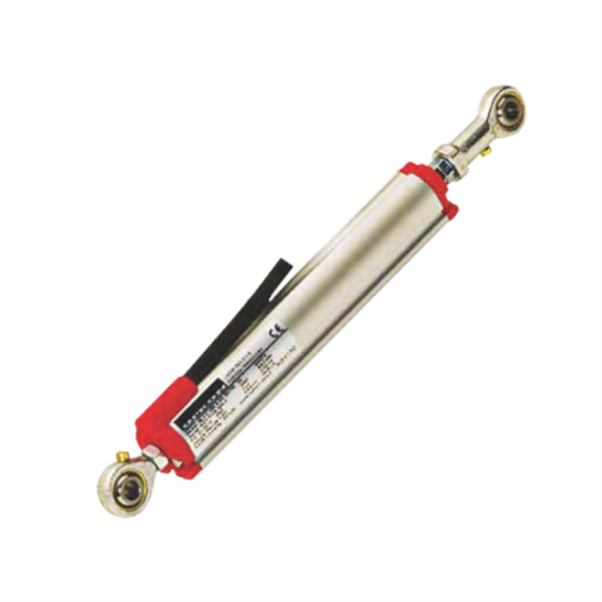

Slim Series Potentiometer with Rod Ends 75 mm stroke and 5K resistance
SKU: SLPC75-5K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SLPC Short Stroke Linear Potentiometers:
Measuring range: 10–400 mm.
Long mechanical life
Excellent repeatability: <0.01mm.
limitless resolution.
2 kOhm: 10–50mm.
5 kOhm: 75–400mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measurement stroke: 10 to 400 mm.
Linearity: ±0.05% (>200 mm), ±0.1% (130–200 mm), ±0.2% (75–130 mm), and ±0.5% (<75 mm).
Repeatability: <0.01 mm.
Resolution: unlimited.
Resistance: 5 kOhm: 75–400 mm.
Resistance tolerance: ± 20%.
Load resistance: 100 kOhm min.
Cursor current recommendation: <1 µA.
Maximum allowed applied voltage: 28 VDC.
Electrical connections: Connectors or 1 m cable output.
Displacement speed: <5m/s.
Mechanical life: 100 million movements.
Case dimensions: ø18 mm.
Case material: Anodized aluminium.
Rod material: Stainless steel.
Rod diameter: ø5 mm
Mechanical fixings: Ball joints on both sides.
IP degree: IP65.
Operating temperature range: -20°C to +80°C.
Storage temperature range: -30°C to +90°C.
