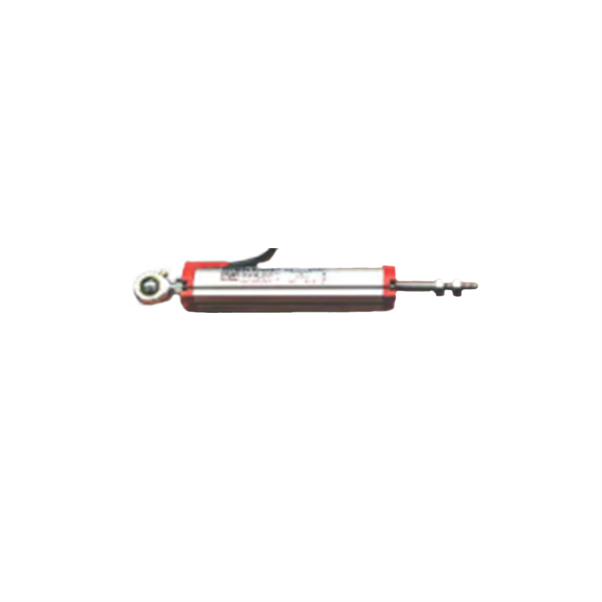

Slim Series Potentiometer Spring Loaded 100 mm stroke and 5K resistance
SKU: SLPS100-5K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A tiny series spring-loaded linear potentiometer, the Opkon SLPS100-5K is made for accurate position measuring in confined areas.
With its 100 mm stroke length and 5 k Ohm resistance, this type is perfect for applications requiring excellent accuracy but with little space.
A spring return mechanism built into the potentiometer guarantees reliable and repeated readings.
It is appropriate for a range of industrial settings due to its sturdy design and premium materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SLPS100-5K.
Measurement Stroke: 100 mm.
Resistance: 5 k Ohm.
Linearity: ±0.2% for 75-100 mm, ±0.5% for <75 mm.
Repeatability: <0.01 mm.
Resolution: Infinite.
Load Resistance: 100 k Ohm minimum.
Recommended Wiper Current: <1 μA.
Permissible Applied Voltage: 28 V DC max.
Displacement Speed: <5 m/s.
Mechanical Life: 100 million movements.
Case Dimensions: Ø18 mm.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Variable brackets.
Protection Level: IP65 (EN 60529).
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
Electrical Connections: Connector or 1 m cable output.
