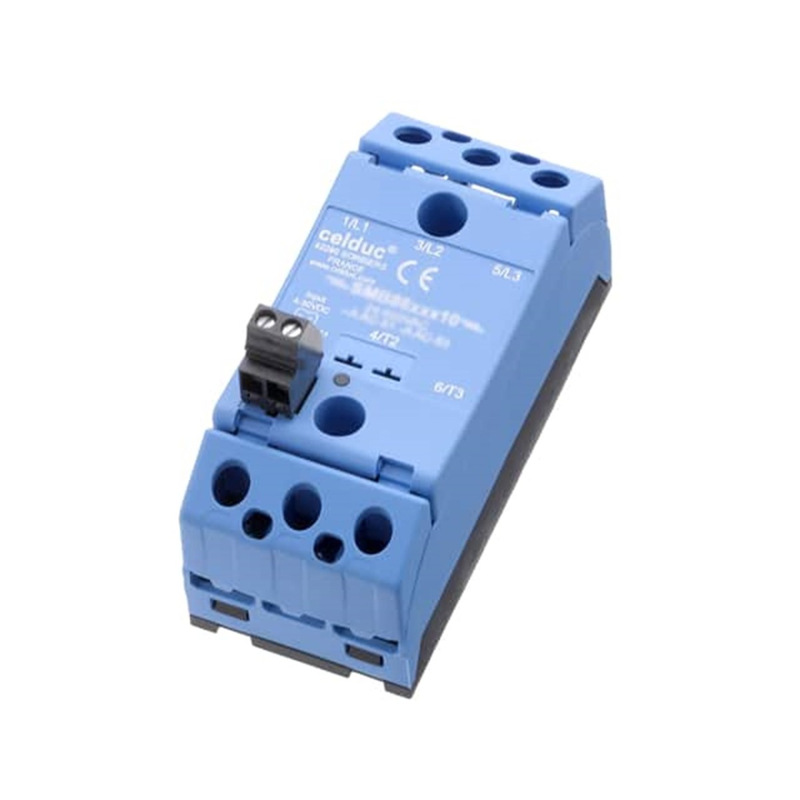

3X35A 150-520VAC 3 PHASE SOLID STATE RELAY
SKU: SMB8670910
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Three-phase solid state relays in the Sight-Pac series:
For a long lifespan and large surge currents, all three-phase solid state relays use modern, highly efficient back-to-back thyristors on the output with TMS technology.
Intended to regulate loads linked in star or delta configurations (if balanced without neutral) using three wires and three phases.
The SSR switches two of the three phases, with the third being connected directly.
Buy currently uses Select Automation shop pricing and checkout.
Three-phase, two-leg SMB series solid state relay:
Made to regulate three-phase loads that are coupled in a delta or star configuration (if balanced).
The SSR switches two of the three phases, with the third phase being connected directly.
Zero Cross Solid-State relay with three phases with a single direct linked phaseintended to support resistive loads.
General features:
Manage the LED status.
Intended to support resistive loads.
Complies with: CEI 62314, UL-cUL, IEC/EN 60947-4-3.
One direct connected phase and three phase zero cross solid-state relays are combined.
Specifications:
SERIES: SMB series
DESCRIPTION: Three phase solid state relay
MAXIMUM THYRISTOR RATING: 2 x 75A
SWITCHING CURRENT: 3 x 35A
SWITCHING VOLTAGE: 150 - 520 VAC
PEAK VOLTAGE: 1600V
CONTROL VOLTAGE: 4 - 30 VDC
DIMENSIONS (MM): (H) 100 x (W) 76.5 x (D) 35.5.
