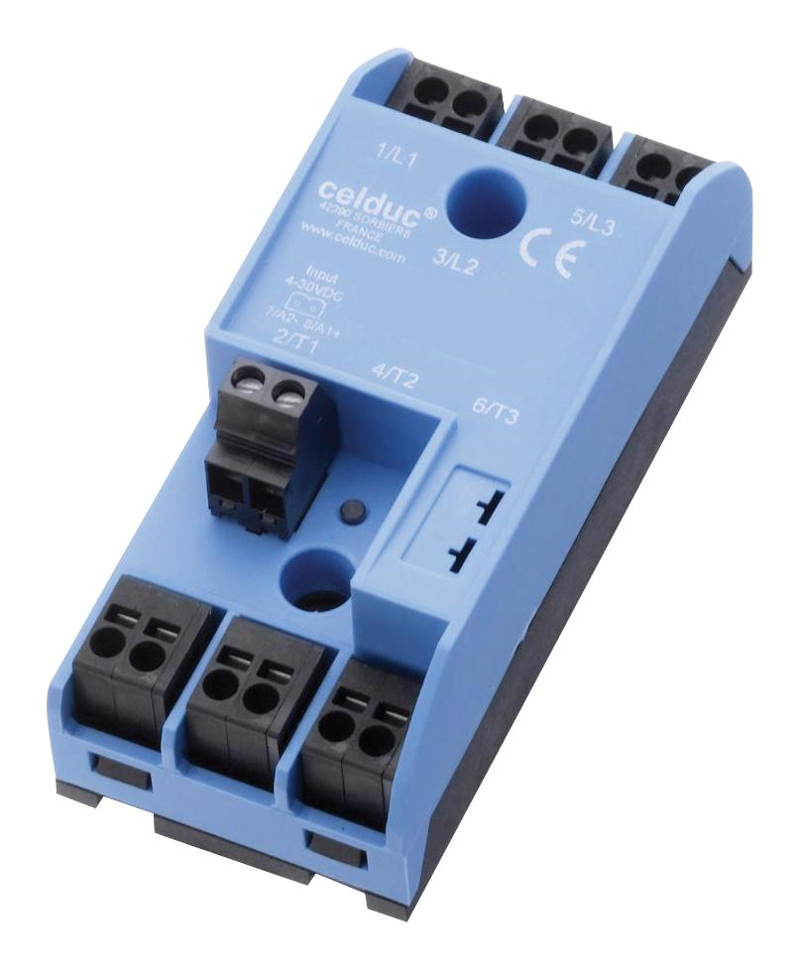

3X20A 24-520VAC 3 PHASE SOLID STATE RELAY
SKU: SMT8620520
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Three-phase solid state relays in the Sight-Pac series:
For a long lifespan and large surge currents, all three-phase solid state relays use modern, highly efficient back-to-back thyristors on the output with TMS technology.
Intended to regulate loads linked in star or delta configurations (if balanced without neutral) using three wires and three phases.
The SSR switches two of the three phases, with the third being connected directly.
Buy currently uses Select Automation shop pricing and checkout.
Three-phase solid state relays, or SMT series:
For managing three-phase, three-wire loads.
Solid State relay (SSR) has three phases and zero cross, intended for various types of loads.
Power terminals with spring clamps and control terminals that plug in.
General features:
Manage the LED status.
Intended to support resistive loads.
Complies with: CEI 62314, UL-cUL, IEC/EN 60947-4-3.
One direct connected phase and three phase zero cross solid-state relays are combined.
Specifications:
SMT series - Three phase Solid State Relay
SERIES: SMT series
DESCRIPTION: Three phase solid state relay
MAXIMUM THYRISTOR RATING: 3 x 25A
SWITCHING CURRENT: 3 x 20A
SWITCHING VOLTAGE: 24 - 520 VAC
PEAK VOLTAGE: 1200V
CONTROL VOLTAGE: 4 - 30 VDC
DIMENSIONS (MM): (H) 100 x (W) 76.5 x (D) 35.5
