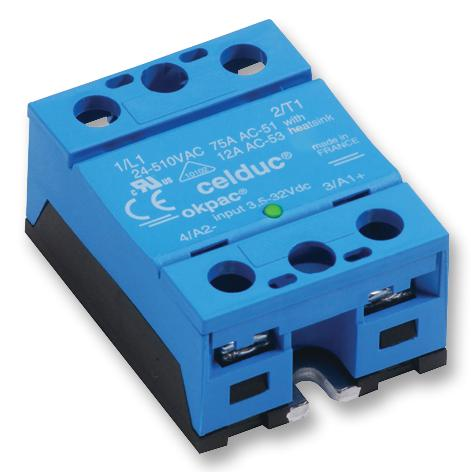

50A 24-510VAC 1200V SS RELAY IP20
SKU: SO865070
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid state relays (SSR):
With an extremely long lifespan and back-to-back thyristors, all Celduc SSRs (solid state relays) use 4th generation TMS2 technology.
Buy currently uses Select Automation shop pricing and checkout.
General Features:
LED status control.
Input current that is regulated.
EMC appropriate for an industrial setting.
SO8 range for infrared and most other load types.
Voltage protection for both the output and the transil (VDR).
Zero-cross switching at a low zero-crossing voltage of less than 12V.
As per IEC/EN 61000-4-4 (bursts) and IEC/EN 61000-4-5 (spikes), extremely high immunity.
Specifications:
SERIES: SO8
SWITCHING CURRENT: 50A
SWITCHING VOLTAGE; 24 - 510 VAC
PEAK VOLTAGE: 1200V
CONTROL VOLTAGE: 3.5 - 32 VDC
DESCRIPTION: Zero-cross for most loads
INDEX PROTECTION IP: IP20
DIMENSIONS (MM): (H) 59.4 x (W) 45 x (D) 30
