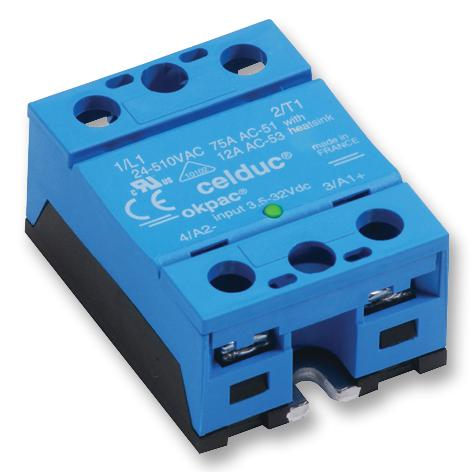

50A 24-510VAC 1200V SS RELAY
SKU: SO865970
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid state relays (SSR):
Back-to-back thyristors and 4th generation TMS2 technology, which has an extremely long lifespan, are features found in every Celduc SSR (solid state relay).
Buy currently uses Select Automation shop pricing and checkout.
General features:
Manage the LED status light.
Input current that is controlled.
In an industrial setting, EMC compliant.
Lights and infrared loads are within the SO8 range.
Input (transil) and output (VDR) voltage protection.
Zero-cross switching at low zero-crossing voltages (<12V).
IEC/EN 61000-4-4 (bursts) and IEC/EN 61000-4-5 (spikes) both confirm very good immunity.
Specifications:
SERIES: SO8
SWITCHING CURRENT: 50A
SWITCHING VOLTAGE: 24 - 510 VAC
PEAK VOLTAGE: 1200V
CONTROL VOLTAGE: 20 - 265 VAC/DC
DESCRIPTION: Zero-cross for most loads
INDEX PROTECTION IP: IP20
DIMENSIONS (MM): (H) 59.4 x (W) 45 x (D) 30
