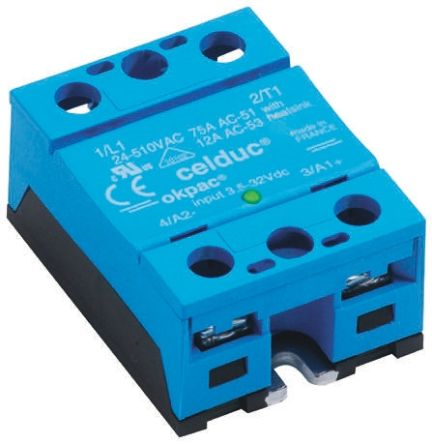

75A 24-510VAC 1200V SS RELAY
SKU: SO867970
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid state relays (SSR):
Every Celduc SSR (solid state relay) has a very long lifespan and is equipped with back-to-back thyristors and 4th generation TMS2 technology.
Buy currently uses Select Automation shop pricing and checkout.
General features:
LED status control.
Input current that is regulated.
EMC suitable for use in an industrial setting.
SO8 range for infrared and light loads, respectively.
Protection against voltage on the input (transil) and output (VDR).
Zero-cross switching at a low threshold for zero-crossing (<12V).
Extremely high immunity as defined by IEC/EN 61000-4-5 (spikes) and 61000-4-4 (bursts).
Specifications:
SERIES: SO8
SWITCHING CURRENT: 75A
SWITCHING VOLTAGE: 24 - 510 VAC
PEAK VOLTAGE: 1200V
CONTROL VOLTAGE: 20 - 265 VAC/DC
DESCRIPTION: Zero-cross for most loads
INDEX PROTECTION IP: IP20
DIMENSIONS (MM): (H) 59.4 x (W) 45 x (D) 30
