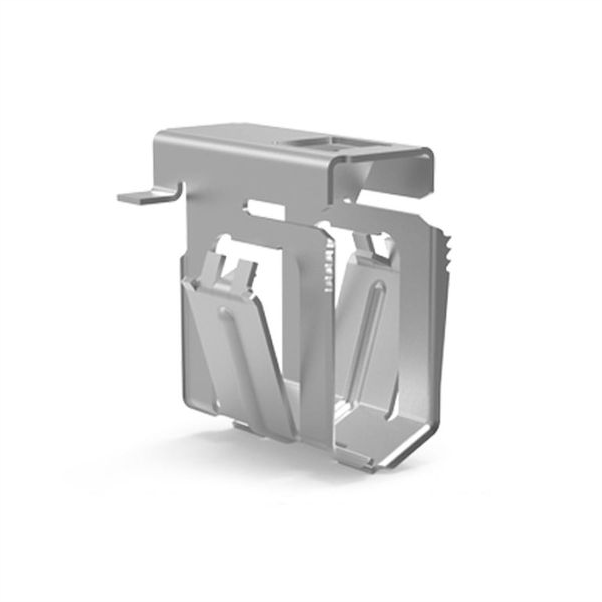

Araymond Powersnap 90B W/Grounding - Anti-Theft
SKU: SOL-0003-G14
Sold by Select Automation
Final price R 35.50
R 30.87 excl. VAT
Availability: In Stock (32 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Screwless and tool-free clipped fastening systems provide quick and easy assembly.
It enables customers to minimize the total cost of renewable energy.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: Steel 65Mn - GB/T 1222.
Surface Treatment: Zn Al Flake coating.
Dimensions (mm): 44x48x34.
Weight: 33.4g.
Mechanical Resistance: Load +5400/-2400 Pa internal tests.
Corrosion Resistance: No red rust after 1000 hours salt spray internal tests acc. EN60068-2-11:1999.
Grounding Continuity: Internal tests compliant with IEC 60439-1:2004 8.2.4.1 after 240 hours salt spray, acc. EN 60068-2-11:1999.
PV Module Specifications: Module with frame thickness A between 1,5 and 2,2 mm, minimum lip length B of 16 mm and minimum frame height C of 30 mm.
Rail Specifications:
Standard Strut rails 41 x 41 mm or 41 x 62 mm.
Or steel rails with square punch.
Or with specific punch.
