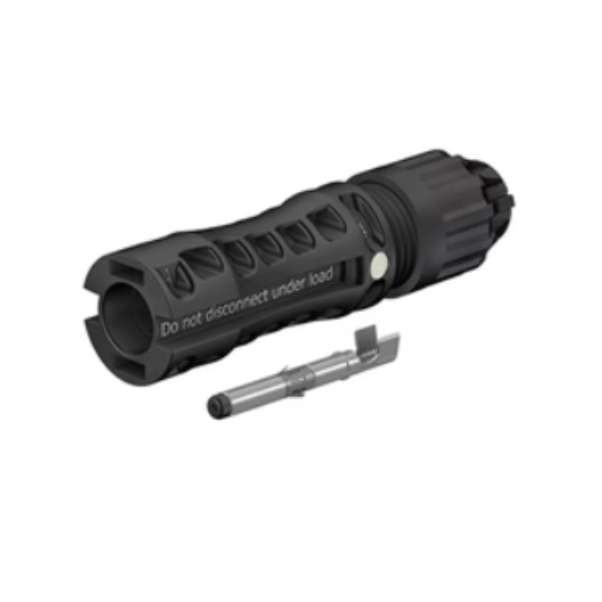

Staubli PPV-KBT4-EVO 2/61-UR Female MC4 1500V DC
SKU: SOL-0005-G14
Sold by Select Automation
Final price R 31.56
R 27.44 excl. VAT
Availability: In Stock (48 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Snap-in lock.
Locking using a safety lock clip PV-SSH4 in line with NEC 2011, which can only be released with the tool.
Proven MULTILAM technology with exceptional long-term stability offers consistent low performance loss across the plug connector's entire service life.
Tried and tested plug connectors, with 14 years of experience in the field.
Suitable for assembly in 4- and 6-mm cross-sections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Female.
Voltage: 1500 V DC.
Connector system: Ø 4 mm.
Ambient temperature range: -40 °C ... +85 °C.
Transportation/storage temperature range: -30 °C/+60 °C.
Transportation/storage relative humidity: < 70 %.
Upper limiting temperature: 115 °C (IEC).
Degree of protection mated: IP65/IP68 (1 m, 168 h).
Degree of protection, unmated: IP2X.
Overvoltage category: III.
Contact resistance of plug connectors: < 0.2 mΩ.
Locking system: Locking type.
Class (IEC): II.
Contact system: MULTILAM.
Type of termination: Crimping.
Warning: Do not disconnect under load.
Contact material: Copper, tin plated.
Insulation material: PA.
Flame class: UL94-V0.
Ammonia resistance (TÜV Rheinland certified acc. to 2 PfG 1911/03.2011): Q60139020-0001.
TÜV-Rheinland certified according to IEC 62852:2014+Amd.1:2020: R 60127169.
UL recognized component in accordance with UL6703: E343181.
Maximum altitude above sea level for operation: 5000 m.
Temperature Level according to IEC TS 63126: Level 2.
