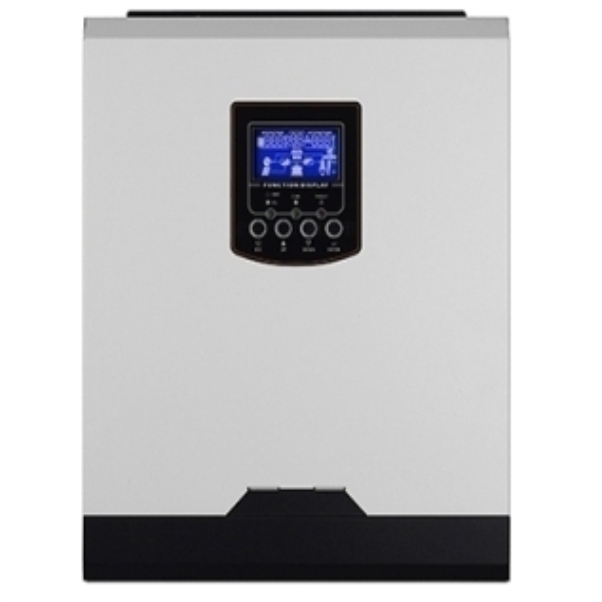

Mecer Axpert V 3kW Pure Sine Wave Inverter with 1200W PWM controller
SKU: SOL-0008-G14
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Mecer Axpert V 3kW Pure Sine Wave Inverter with 1200W PWM Controller is a versatile and efficient solar inverter that provides consistent power support.
This multi-functional device functions as an inverter, solar charger, and battery charger, providing continuous electricity.
It has a comprehensive LCD display with user-configurable options such as battery charging current, AC/solar charger priority, and allowable input voltage dependent on application.
The pure sine wave output protects delicate devices from power spikes and fluctuations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rated Power: 3000 VA / 3000 W.
Input Voltage: 230 VAC.
Selectable Voltage Range: 170-280 VAC (for personal computers), 90-280 VAC (for home appliances).
Frequency Range: 60/50 Hz (auto sensing).
Output AC Voltage Regulation (Battery Mode): 230 VAC ± 5%.
Surge Power: 6000 VA.
Efficiency (Peak): 90%~93%.
Transfer Time: 10 ms (for personal computers), 20 ms (for home appliances).
Waveform: Pure Sine Wave.
Battery Voltage: 24 VDC.
Maximum PV Array Open Circuit Voltage: 80 VDC.
Maximum PV Array Power: 1200W.
Maximum Solar Charge Current: 50A.
Maximum AC Charge Current: 25A.
Maximum Charging Current: 70A.
Physical Dimensions: 100 x 285 x 334 mm.
Net Weight: 6.3 kg.
Communication Ports: USB, RS-232.
Operating Environment: -10°C to 50°C (operating temperature), -15°C to 60°C (storage temperature).
