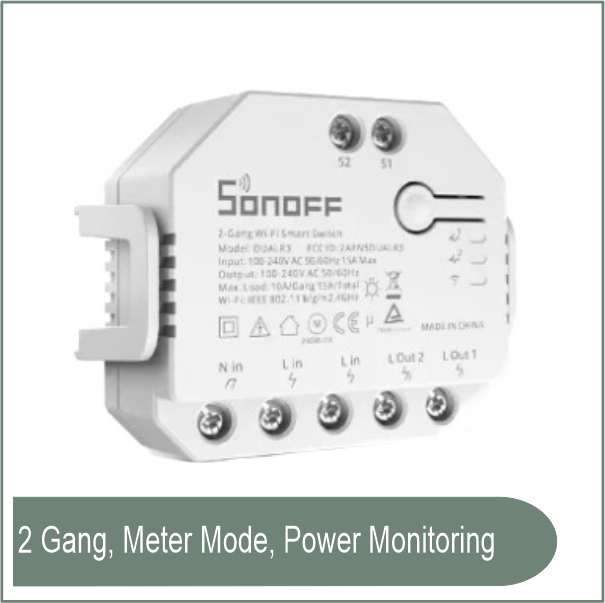

Sonoff DualR3 Dual Relay Two Way Power Meter Smart Switch
SKU: SON-0011-E02
Incl. VAT R 321.21
R 279.31 excl. VAT
Availability: In Stock (5 on hand)
Short Description
- The SONOFF DualR3 is a dual-channel Wi-Fi smart relay switch with power monitoring that can control and monitor two separate electrical circuits from a single device.
- With two-way switch management, the DualR3 is suitable for converting traditional lighting circuits to smart lighting systems while keeping existing wall switch functionality.
- The gadget supports real-time energy monitoring, allowing users to track voltage, current, power, and energy consumption via the eWeLink app.
- This make
Specifications:
- Model: DualR3.
- Channels: 2.
- Supply Voltage: 100–240VAC, 50/60Hz.
- Connectivity: Wi-Fi IEEE 802.11 b/g/n.
- Wi-Fi Frequency: 2.4GHz.
- Maximum Load per Channel: 10A.
- Total Maximum Load: 15A.
- Maximum Power: 3300W.
- Energy Monitoring: Yes.
- Supported Modes: Switch Mode, Motor Mode.
- Motor Applications: Roller Shutters, Blinds, Curtains.
- Input Terminals: Live, Neutral.
- External Switch Support: Yes.
- Operating Temperature: -10°C to +40°C.
- Operating Humidity: 5%–95% RH (non-condensing).
- Dimensions: 54 × 49 × 24 mm.
- Housing Material: PC V0 Flame Retardant.
Features
- Dual-channel smart relay with independent control of two circuits.
- Supports two-way switch wiring configurations.
- Built-in power and energy monitoring.
- Measures voltage, current, power, and energy consumption.
- Dedicated motor control mode for tubular motors.
- Supports roller shutters, blinds, curtains, and awnings.
- Built-in motor interlock protection.
- Remote control via the eWeLink app.
- Scheduling, countdown, and timer functions.
- Voice control support.
- No additional hub required.
- Compact design for installation in electrical boxes and enclosures.
