Sonoff 5V Wifi Relay Module 5v dc input
SKU: SON-0034-E05
Sold by Select Automation
Final price R 129.43
R 112.55 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

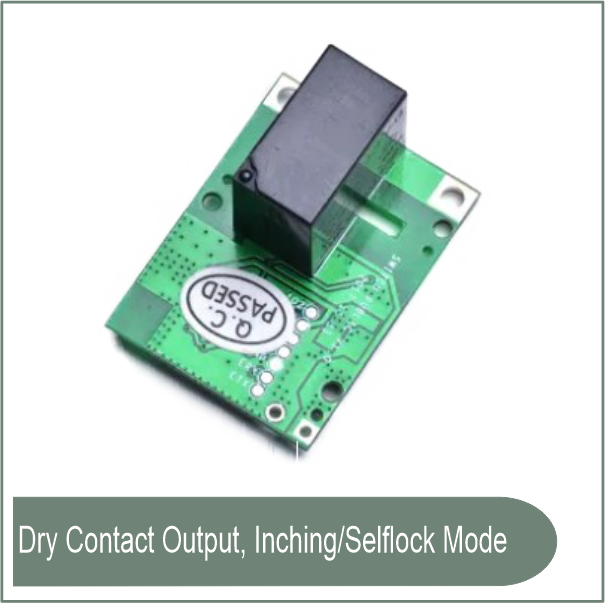

The SONOFF RE5V1C 5V Wi-Fi Relay Module is a small 5V DC-powered smart relay intended for remote switching and automation of low-voltage devices and dry-contact applications.
The module has a dry contact relay output and can be used to control garage doors, gate motors, access control systems, alarms, lighting circuits, and other equipment that requires momentary or continuous switching.
The module connects directly to a 2.4GHz Wi-Fi network and is controlled by the eWeLink app, allowing users to operate linked devices remotely from anywhere without the need for an additional hub or gateway.
The RE5V1C supports both Inching Mode and Self-Locking Mode, making it ideal for pulse control applications like gate motors as well as ordinary ON/OFF switching.
It also enables voice control via Amazon Alexa, Google Assistant, and automation systems like IFTTT.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SONOFF RE5V1C.
Input Power: 5 V DC.
Relay Output: Dry contact (safe for low voltage circuits).
Wi Fi Standard: IEEE 802.11 b/g/n (2.4 GHz only).
Chipset: ESP8285 Wi Fi SoC.
Control Modes:
Inching mode → relay activates briefly (pulse control).
Self locking mode → relay toggles on/off like a switch.
App Support: eWeLink (iOS/Android).
Voice Control: Alexa, Google Assistant, IFTTT.
Functions: Remote ON/OFF, LAN control, scheduling, countdown timers, smart scenes.
