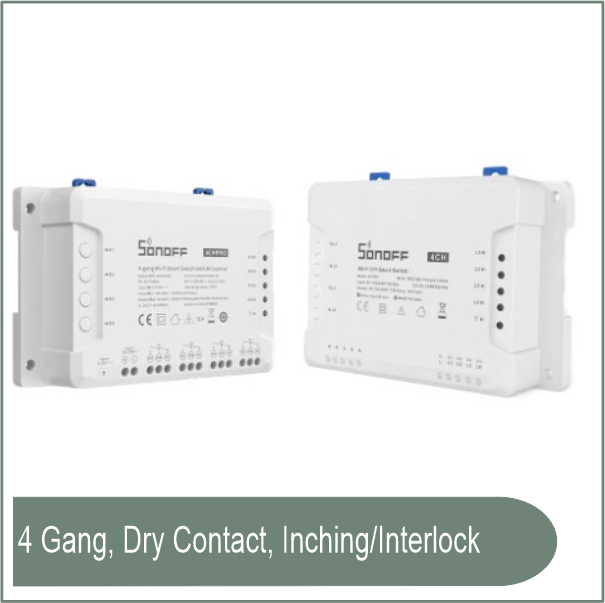

4CHR3 4-Gang Wi-Fi DIY Smart Switch With RF Control
SKU: SON-0052-F01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF 4CHR3 4-Gang Wi-Fi DIY Smart Switch is a multifunctional four-channel smart relay that allows you to remotely operate numerous electrical circuits from a single device.
It is ideal for connecting lighting, pumps, garage doors, motorized curtains, and other appliances directly to a Wi-Fi network without the use of a hub.
With self-locking, interlock, and inching modes, DIN rail mounting, voice control, and remote access via the eWeLink app, the 4CHR3 is a perfect solution for home, commercial, and industrial automation projects.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Range: 100-240V AC 50/60Hz.
Max. Load: 10A/2200W/Gang 16A/3500W/Total.
Wireless Frequency: Wi-Fi 2.4GHz.
Wireless Standard: IEEE802.11 b/g/n 2.4GHz(2400M-2483.5M).
Security Mechanism: WPA/WPA2.
Enclosure Material: PC V0.
Gang: 4.
Dimension:145*90*34 (mm).
Operating Temperature(recommended): -10ºC-40ºC(14°F-104°F).
Operating Humidity: 5%-95%RH, Non-condensing.
Features:
Remotely control connected lights or devices via APP.
3 working modes with self-locking, interlock and inching mode.
Support scheduling a timer to make devices automatically start and stop to work.
Customize smart scenes to make the device connected with the switch to trigger other devices.
Share the control permission of devices to other accounts to control together.
Check real-time ON/OFF status of devices on your mobile phone.
Power on state allows users to set the on/Off/Keep status for the connected device before power failure and ensure it remains the arranged status after power restoration.
