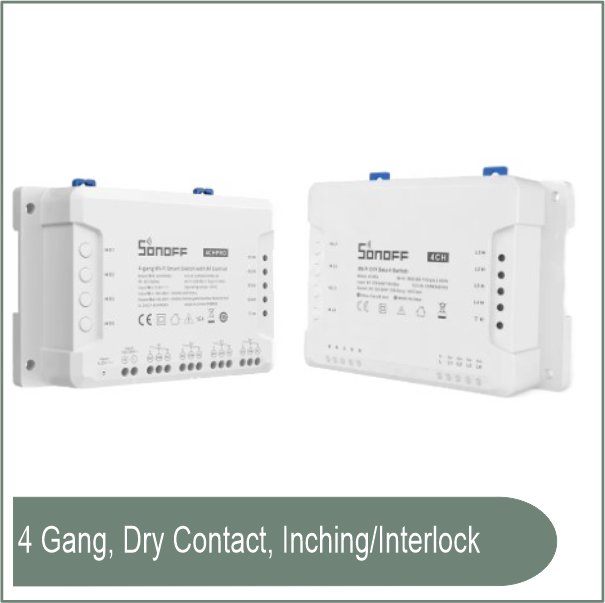

4CHPROR3 4-Gang Wi-Fi Smart Switch With RF Control
SKU: SON-0053-F01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Sonoff 4CHPROR3 is a 4-gang Wi-Fi smart switch that allows users to control four separate electrical devices or circuits.
It supports both Wi-Fi and RF (radio frequency) control, enabling remote operation through a smartphone app, RF remote, or voice assistants.
It is ideal for home automation, allowing control over lighting, appliances, and other devices either manually or automatically.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: 4CHPROR3
Voltage Range: 100-240V AC 50/60Hz (DC: 9-23V).
Max. Load: 10A/2200W/Gang 40A/8800W/Total.
Wireless Frequency: Wi-Fi 2.4GHz.
Wireless Standard: IEEE802.11 b/g/n 2.4GHz2.4GHz(2400M-2483.5M).
Operating Modes: Interlock, Self-locking, Inching.
Security Mechanism: WPA/WPA2.
Output: 4 Independent channels.
Material: Fire-retardant ABS plastic.
Mounting: DIN rail compatible.
Dimension:145*90*34 (mm).
Operating Temperature(recommended): -10ºC-40ºC(14°F-104°F).
Operating Humidity: 5%-95%RH, Non-condensing.
App Support: eWeLink (iOS & Android).
Features:
4-Gang Control: Independently control up to four different electrical devices or circuits.
Wi-Fi Connectivity: Control devices remotely via the eWeLink app from anywhere using a smartphone.
RF Control: Supports 433MHz RF remote control for local operation without Wi-Fi.
Offers various operating modes for different use cases:
Self-locking: Independently turn devices on/off.
Interlock: Only one channel can be on at a time.
Inching: Device turns on for a set duration before turning off automatically.
Voice Control: Compatible with Amazon Alexa, Google Assistant, and SmartThings for voice commands.
Timer and Schedule: Set timers and schedules for automated device operation.
DIN Rail Mounting: Can be mounted on a DIN rail, making it easy to install in electrical panels.
Scene and Automation Support: Integrates with other smart devices for custom automation rules.
Overload Protection: Prevents devices from overloading by shutting them off when necessary.
