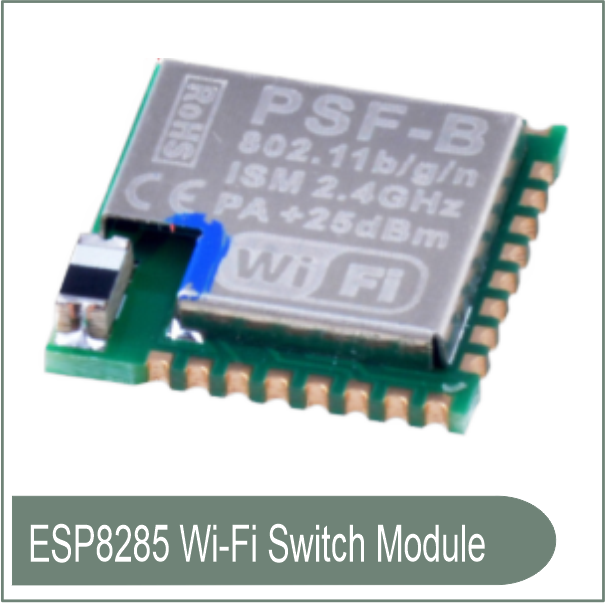

PSF-B Series 1-4 Gang Ultra Low Power ESP8285 Wi-Fi Switch Module
SKU: SON-0079-F04
Sold by Select Automation
Final price R 100.83
R 87.68 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PSF-B Series are tiny Wi-Fi switch modules built on the ESP8285 processor, available in 1–4 gang configurations.
They are intended for smart home automation and IoT applications, providing remote control, scheduling, and integration with apps such as eWeLink.
These modules are developer-friendly and can be integrated into electrical boxes or gadgets.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Chipset: ESP8285 (32 bit MCU, doubles as application processor).
Wi Fi Standard: 802.11 b/g/n @ 2.4 GHz.
Security: WPA/WPA2, WEP64/WEP128, TKIP, AES encryption.
Operating Voltage: 2.7 V – 3.6 V.
Current Consumption:
Average: ~80 mA.
Max working: ~210 mA.
Standby: <200 µA.
Load Capacity: Up to ~10A per gang.
Control Methods:
Device button.
Remote via eWeLink app.
Timer scheduling.
OTA firmware upgrades.
Operating Temperature: 0 °C – 45 °C (storage −10 °C – 75 °C).
Form Factor: Compact, suitable for integration into standard electrical boxes.
