SONOFF SwitchMan 3 Gang 120 Smart Wall Switch-M5 Matter
SKU: SON-0120-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

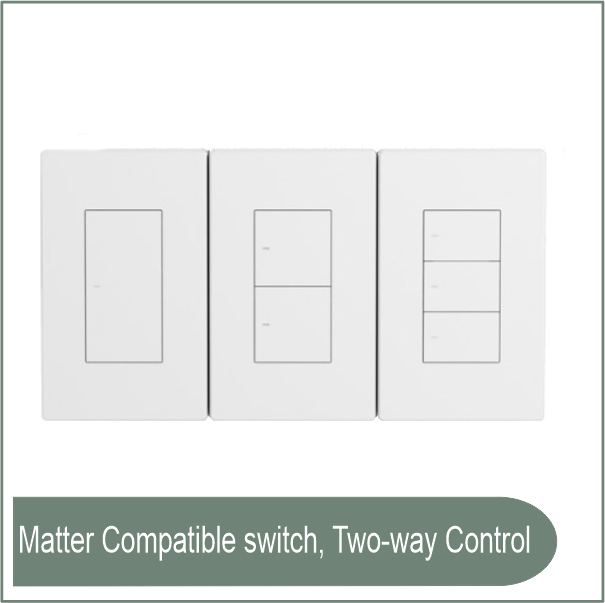

The SONOFF SwitchMan M5 Matter 3-Gang 120 Smart Wall Switch (White) is a three-channel smart wall switch designed for Matter-enabled smart homes.
It allows independent control of three lighting circuits while supporting cross-platform integration with Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant, and the eWeLink ecosystem.
The “120” version uses the larger US-style wall plate format, and the “3 Gang” configuration controls three separate loads from one switch assembly.
Unlike touch-panel switches, the M5 uses physical push buttons that provide tactile feedback and improved reliability for everyday use.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Name: SONOFF SwitchMan Smart Wall Switch-M5 Matter.
Model: M5-3C-120W.
Type: 120 Type (US style).
Color: White.
Channels: 3 Gang.
Rated Voltage: 100–240V AC 50/60Hz.
Rated Current: 2A per gang, 6A total max.
Maximum Load: 1320W total (440W per gang).
LED Load: 100W per gang @ 220V.
Wireless Connectivity: IEEE 802.11 b/g/n 2.4GHz.
MCU: ESP32.
Smart Standard: Matter.
Material: PC V0 + CRS.
Operating Temperature: -10°C to 40°C.
Operating Humidity: 5%–95% RH non-condensing.
Dimensions: 120 × 74 × 41.5 mm.
Certifications: CE / FCC / ISED / RoHS.
App Support: eWeLink.
Voice Assistants: Apple Home, Alexa, Google Assistant.
Key Features:
Matter-certified smart wall switch.
3 independent lighting channels.
Wi-Fi 2.4GHz connectivity.
Physical push-button operation.
Cross-platform Matter support.
Remote smartphone control.
Timer and schedule automation.
Smart scene support.
Group control functions.
LAN local control support.
Family sharing through eWeLink app.
