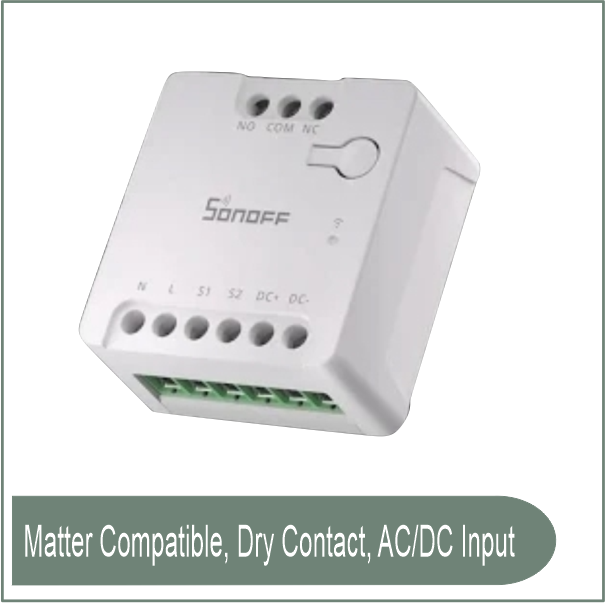

SONOFF MINI Dry Wi-Fi Smart Switch | MINI-D
SKU: SON-0136-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF MINI-D is a small Matter-enabled Wi-Fi dry contact smart switch for controlling equipment that require a potential-free relay contact, such as garage doors, gates, electric locks, boilers, access control systems, and low-power DC motors.
Unlike typical smart switches, which switch mains voltage directly, the MINI-D has a dry contact output with both Normally Open (NO) and Normally Closed (NC) terminals, allowing it to safely interface with a wide range of automation and industrial control systems.
The MINI-D can accept both AC and DC power input, making it suited for installations powered by normal mains voltage or low-voltage control systems.
It connects to a 2.4GHz Wi-Fi network and may be managed remotely using the eWeLink app, voice assistants, scheduling, and automation sequences.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: MINI-D.
Connectivity: Wi-Fi IEEE 802.11 b/g/n.
Wi-Fi Frequency: 2.4GHz.
Matter Support: Yes.
Power Supply (AC): 100–240VAC, 50/60Hz.
Power Supply (DC): 12–48VDC.
Dry Contact Output: NO / NC / COM.
Maximum Resistive Load: 24VDC, 2A.
Maximum Motor Load: 12/24VDC, 8W.
External Switch Input: Yes.
MCU: ESP32-D0WDR2.
Housing Material: PC Flame Retardant.
Operating Temperature: -10°C to +40°C.
Operating Humidity: 5–95% RH (non-condensing).
Dimensions: 41 × 43 × 21.5 mm.
Features:
Matter-certified smart switch.
Dry contact relay output with NO, NC, and COM terminals.
Supports both 100–240VAC and 12–48VDC power input.
Suitable for garage doors, gates, boilers, electric locks, and access systems.
Supports low-power DC motors and solenoid valves.
Remote control via the eWeLink app.
Scheduling and timer functions.
Voice control support.
External switch input support.
Smart scenes and automation support.
Compact size for installation inside enclosures and control panels.
No hub required for eWeLink operation.
