SONOFF MINI DUO 2-Gang Matter Over WiFi Smart Switch | MINI-2GS
SKU: SON-0152-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

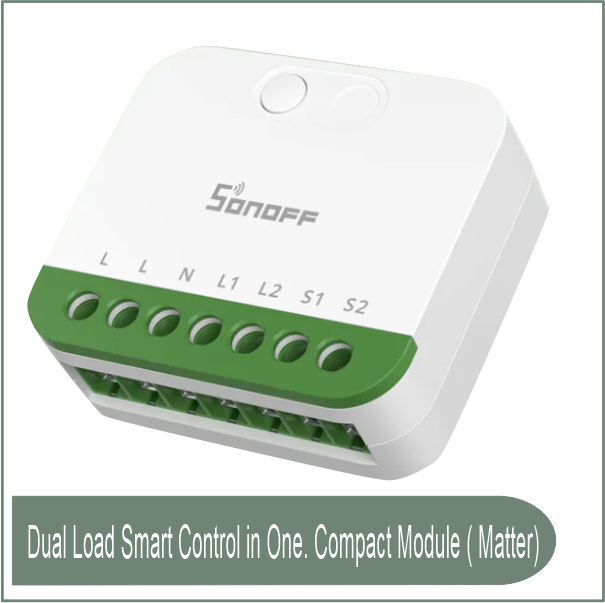

The SONOFF MINI DUO (MINI-2GS) is a small 2-channel Matter over WiFi smart switch module that transforms standard wall switches and electrical loads into smart devices.
It supports independent control of two different circuits while also integrating with major smart home ecosystems using the Matter protocol.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: MINI-2GS.
Product Series: MINI Extreme Series.
Connectivity: Matter over Wi-Fi.
Wi-Fi Standard: IEEE 802.11 b/g/n.
Wi-Fi Frequency: 2.4GHz.
Supply Voltage: 110–240VAC, 50/60Hz.
Maximum Current per Channel: 10A.
Total Maximum Current: 16A.
Relay Channels: 2.
MCU: ESP32-C3FH4X.
External Switch Support: Yes.
Detach Relay Mode: Yes.
Housing Material: PC Flame Retardant.
Operating Temperature: -10°C to +40°C.
Operating Humidity: 5–95% RH (non-condensing).
Dimensions: 45 × 39.4 × 16.8 mm.
Features:
Matter over Wi-Fi smart switch.
Dual independent relay outputs.
Controls two separate loads from one device.
Supports up to 10A per channel.
Maximum combined load of 16A.
Compatible with existing wall switches.
Detach Relay Mode for smart scene triggers.
Remote control via compatible Matter platforms.
Scheduling, timers, and automation support.
Voice control support.
Compact design suitable for wall boxes and enclosures.
Supports smart scenes and routines.
No proprietary hub required.
