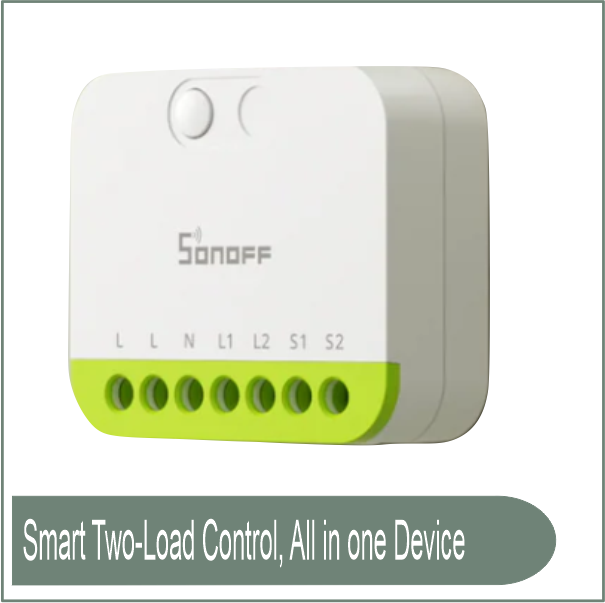

SONOFF MINI DUO 2-Gang Zigbee Smart Switch | MINI-ZB2GS
SKU: SON-0153-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF MINI DUO 2-Gang Zigbee Smart Switch (MINI-ZB2GS) is a tiny Zigbee 3.0 dual-channel smart relay that converts ordinary two-gang wall switches into intelligent smart switches while keeping manual operation.
It supports two independent loads with a combined capacity of up to 16A and allows remote control, scheduling, voice commands, and smart scene automation via compatible Zigbee hubs.
Its ultra-compact design fits perfectly behind normal wall switches, making it an excellent choice for both new and retrofit smart home projects.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: MINI-ZB2GS.
MCU: EFR32MG21.
Communication Protocol: Zigbee 3.0 (IEEE 802.15.4).
Supply Voltage: 110–240VAC, 50/60Hz.
Maximum Current per Channel: 10A.
Total Maximum Current: 16A.
Relay Channels: 2.
External Switch Support: Yes.
Dimensions: 45 × 39.4 × 16.8 mm.
Housing Material: PC.
Operating Temperature: -10°C to +40°C.
Operating Humidity: 5–95% RH (non-condensing).
Features:
Zigbee 3.0 smart relay module.
Dual independent relay outputs.
Controls two separate circuits from one device.
Supports up to 10A per channel.
Maximum combined load of 16A.
Compatible with existing wall switches.
Supports app control and voice assistants through compatible hubs.
Scheduling, timers, and automation support.
Functions as a Zigbee signal repeater/router.
Compact design for wall box installation.
Supports smart scenes and automations.
Comprehensive safety protections including overheat and surge protection.
