      SONOFF MINI DUO-L 2-Gang Zigbee Smart Switch | MINI-ZB2GS-L

      SKU: SON-0154-F06

      Out of stock

      Availability: Out of Stock

      Short Description

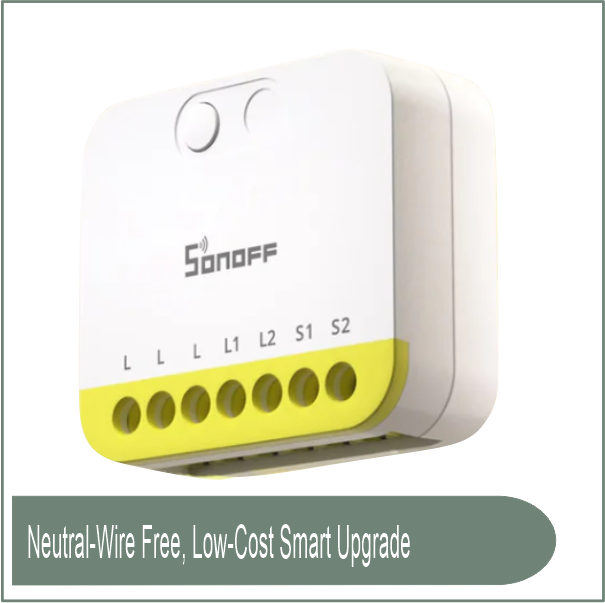

      The SONOFF MINI DUO-L (MINI-ZB2GS-L) is a tiny 2-gang Zigbee 3.0 smart switch developed specifically for installations without a neutral wire, making it perfect for retrofitting older houses and buildings with smart control without rewiring. The MINI-ZB2GS-L, which has two independent relay channels, allows you to operate two lighting circuits or loads separately from a single module while still using your existing wall switches. The ultra-compact design fits easily into typical wall switch boxes, such as European 60mm junction boxes and other compact enclosures. The switch communicates via the Zigbee 3.0 protocol and requires a suitable Zigbee hub or coordinator to operate. Once linked, users can remotely control devices, establish schedules and automations, and use voice assistants on compatible smart home platforms.
      SON-0154-F06
      Alternative image 1
      Specifications: Model: MINI-ZB2GS-L Product Series: MINI Extreme Series Communication Protocol: Zigbee 3.0 (IEEE 802.15.4) MCU: EFR32MG22 Supply Voltage: 100–240VAC, 50/60Hz Maximum Current per Channel: 8A. Total Maximum Current: 12A Resistive Load. LED Load per Channel: 300W @ 240VAC. Total LED Load: 600W @ 240VAC. Minimum Load: 3W. Neutral Required: No. External Switch Support: Yes. Supported Switch Types: Rocker, Momentary, SPDT. Dimensions: 45 × 39.4 × 16.8 mm. Housing Material: PC. Operating Temperature: -10°C to +40°C. Operating Humidity: 5–95% RH (non-condensing).   Features: Zigbee 3.0 smart switch. No neutral wire required. Dual independent control channels. Supports two separate lighting circuits. Compatible with existing wall switches. Supports rocker, momentary, and SPDT switches. Remote control via compatible Zigbee platforms. Scheduling, timers, and automation support. Supports smart scenes and routines. No external anti-flicker bypass module required. Compact design for installation inside wall boxes. Suitable for older homes with live-only wiring installations.
