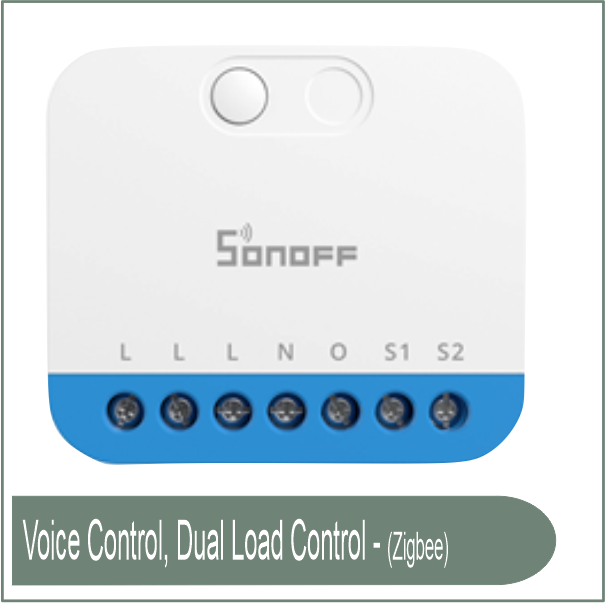

SONOFF MINI Extreme Zigbee Dimmer Switch | MINI-ZBDIM
SKU: SON-0159-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF MINI Extreme Zigbee Dimmer Switch (MINI-ZBDIM) is an ultra-compact Zigbee 3.0 smart dimmer that offers smooth, flicker-free dimming for LED, incandescent, and halogen lighting.
It is designed to fit behind normal wall switches and supports remote control, voice control, scheduling, and energy monitoring via compatible Zigbee hubs.
With automatic brightness calibration, trailing-edge dimming technology, and support for numerous switch types, the MINI-ZBDIM is an excellent choice for current smart lighting installations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: MINI-ZBDIM.
Product Series: MINI Extreme Series.
Communication Protocol: Zigbee 3.0 (IEEE 802.15.4).
MCU: EFR32MG21.
Rated Voltage: 220–240VAC.
Frequency: 50Hz.
Maximum Current: 2A.
Dimmable LED Load: Up to 200VA.
Incandescent Load: Up to 400W.
Halogen Load: Up to 400W.
Electronic Transformer Load: Up to 200W.
Energy Monitoring: Yes.
Overheat Protection: Yes.
Zigbee Router Function: Yes.
External Switch Support: Yes.
Housing Material: PC.
Dimensions: 45 × 39.4 × 16.8 mm.
Operating Temperature: -10°C to +40°C.
Operating Humidity: 5–95% RH (non-condensing).
Features:
Zigbee 3.0 smart dimmer switch.
Ultra-compact MINI Extreme design.
Trailing edge dimming technology.
Supports dimmable LED, incandescent, halogen, and electronic transformer loads.
Smooth, flicker-free dimming performance.
Automatic and manual brightness calibration.
Real-time power monitoring.
Built-in overheat protection.
Supports multiple external switch types.
Functions as a Zigbee router to extend network coverage.
Voice control support through compatible platforms.
Smart scenes, timers, and automation support.
