SONOFF NSPanel Pro Gen2 Dual Channel Relay Smart Home Control Panel 86 Type
SKU: SON-0162-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

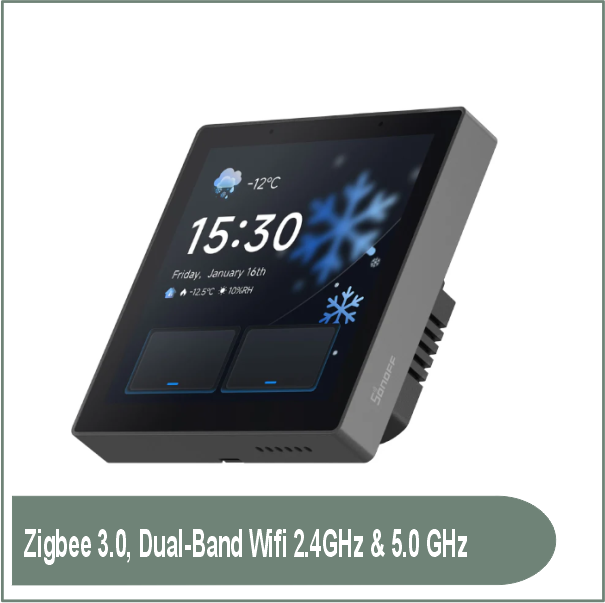

The SONOFF NSPanel Pro Gen2 Dual Channel Relay Smart Home Control Panel (86 Type) is a cutting-edge all-in-one smart home control panel that integrates a 3.95-inch touchscreen, 2-channel smart relay, Matter Bridge, Zigbee 3.0 Gateway, and Home Assistant dashboard into a single wall-mounted device.
It is powered by a quad-core processor with 2GB RAM and 32GB storage, allowing for local smart home control, energy monitoring, thermostat features, voice assistant integration, and seamless management of Zigbee, Matter, and Wi-Fi devices from a single interface.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: NSPanel Pro Gen2 (Dual Channel).
Product Type: Smart Home Control Panel / Smart Wall Switch.
Installation Type: 86 Type (EU standard wall box).
Operating System: Android 8.1.
Screen Size: 3.95-inch IPS capacitive touchscreen.
Resolution: 480 × 480 pixels.
Touch Type: Capacitive touch.
Input Voltage: 100–240V AC, 50/60Hz, 4A Max.
Relay Output: 100–240V AC, 50/60Hz.
Maximum Relay Load:
10A per gang.
16A total.
Operating Temperature: -10°C to +40°C.
Working Humidity: 5% – 90% RH (non-condensing).
Casing Material: PC V0 + CRS + Tempered Glass.
Dimensions: 86 × 86 × 41.5 mm.
Net Weight: ≈188 g.
