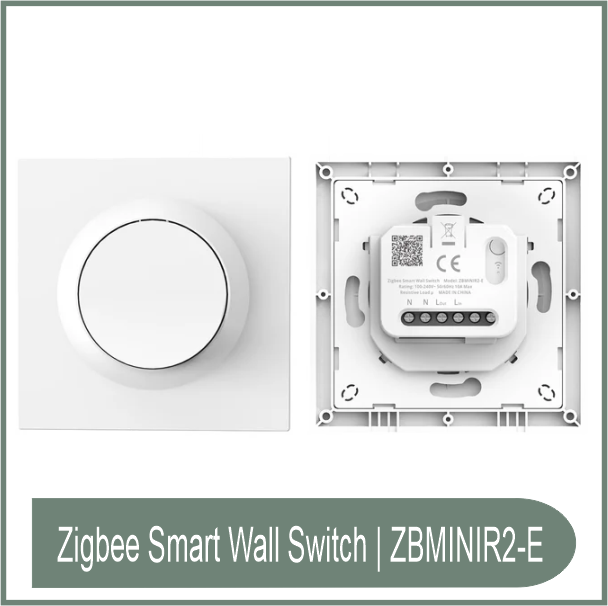

SONOFF Orb-ZBW1 Zigbee Smart Wall Switch | ZBMINIR2-E
SKU: SON-0164-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF Orb-ZBW1 (ZBMINIR2-E) is a Zigbee 3.0 smart wall switch module from SONOFF Fusion Series.
It allows classic lighting circuits to be transformed into smart lighting systems while still retaining manual wall switch control.
The device enables remote switching, automation, scheduling, and Zigbee mesh networking features through a compatible Zigbee hub.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage: 100–240V AC, 50/60Hz.
Maximum Load: 10A Max.
Output Type: Single-channel relay control.
Standby Power Consumption: Low-power Zigbee operation.
Operating Temperature: -10°C to +40°C.
Operating Humidity: 5% – 95% RH (non-condensing).
Dimensions: ~39.5 × 32 × 18.4 mm.
Housing Material: PC V0 flame-retardant plastic.
Colour: White.
Mounting Compatibility: Fits most standard switch back boxes.
