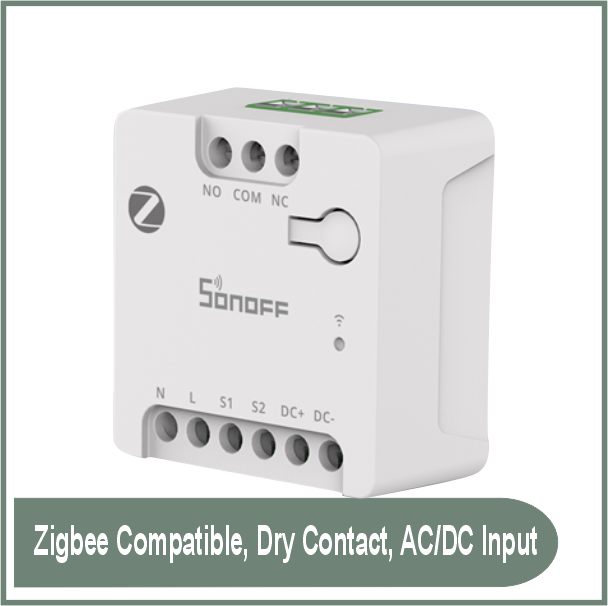

SONOFF MINI Dry Zigbee Dry Contact Smart Switch | MINI-ZBD
SKU: SON-0167-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF MINI-ZBD is a small Zigbee 3.0 dry contact smart switch designed to automate garage doors, gates, boilers, water pumps, electric locks, solenoid valves, and other dry contact devices.
It supports both 100-240V AC and 12-48V DC power input, allowing for versatile installation in residential, commercial, and industrial settings.
The MINI-ZBD, which has NO/NC dry contact outputs, remote control, scheduling, voice control, and connectivity with Home Assistant and the eWeLink ecosystem, is an excellent choice for dependable low-voltage and automation control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: MINI-ZBD.
Product Type: Zigbee Dry Contact Smart Switch.
Communication Protocol: Zigbee 3.0.
Control Type: App Control / Automation / Manual Switch Input / Voice Control.
Application: Dry contact automation & low-voltage control systems.
Input Voltage (AC): 100–240V AC, 50/60Hz.
Input Voltage (DC): 12–48V DC.
Dry Contact Output: Voltage-free relay output.
Relay Contact Type:
NO (Normally Open).
NC (Normally Closed).
COM (Common Terminal).
Maximum Switching Voltage: 240V AC / 30V DC.
Maximum Switching Current: 2A Resistive Load.
Low-Voltage DC Load Support: Up to 8W DC load control.
Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4).
Frequency Band: 2.4GHz.
Zigbee Function: Zigbee Router (Mesh Signal Repeater).
Hub Requirement: Requires compatible Zigbee Hub/Gateway.
Housing Material: Flame-retardant PC (Polycarbonate).
Colour: White.
Form Factor: Compact mini design for concealed installation.
Operating Temperature: -10°C to +40°C.
Operating Humidity: 5%–95% RH (non-condensing).
Indoor Use Only.
