SONOFF SenseGuard Presense Core 24G Zigbee Human Presence Sensor | SNZB-06P24
SKU: SON-0168-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

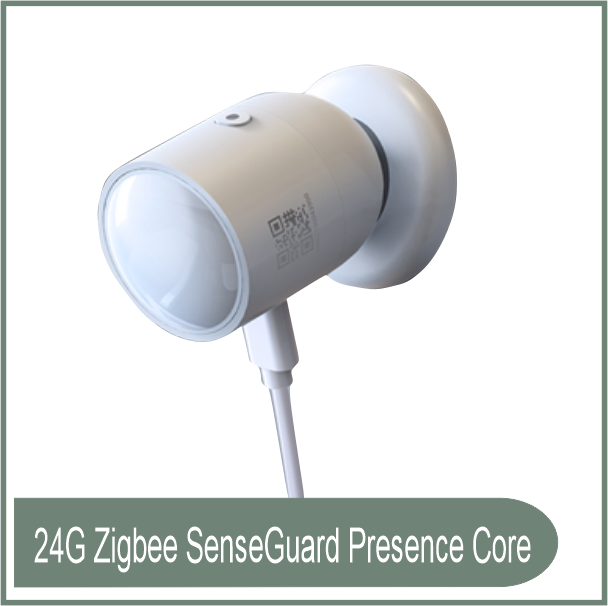

The SONOFF SenseGuard Presence Core 24G (SNZB-06P24) is an advanced Zigbee human presence sensor that uses 24GHz mmWave radar technology to detect human presence even when occupants are sitting stationary or moving only slightly.
Unlike standard PIR sensors, it can detect small movements like breathing and hand motions, making it perfect for intelligent lighting, occupancy monitoring, and smart home automation.
The sensor also has ambient light detection, adjustable detection zones, and interference filtering to provide more dependable functioning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SNZB-06P24.
Product Type: Zigbee Human Presence Sensor.
Detection Technology: 24GHz mmWave Radar.
Communication Protocol: Zigbee 3.0 (IEEE 802.15.4).
Application: Indoor human presence detection & smart automation.
Detection Method: Human presence detection using 24GHz millimeter-wave radar.
Detection Range: Up to 4 meters.
Static Presence Detection: Best performance within 3 meters facing the device.
Detection Zones: 7 independent customizable zones.
Micro-Movement Detection: Detects subtle movement such as body motion and breathing.
Anti-Interference: Self-learning interference filtering to reduce false triggers from appliances, pipes, and environmental movement.
Wireless Protocol: Zigbee 3.0.
Wireless Standard: IEEE 802.15.4.
Communication Distance: Up to 100m (open area).
Hub Requirement: Requires a compatible Zigbee gateway/hub.
Compatible Ecosystems:
eWeLink.
Home Assistant.
Apple Home (via Matter Bridge).
SONOFF Zigbee gateways.
Input Voltage: 5V DC ⎓ 0.5A.
Power Interface: USB Type-C.
Dimensions: 44.2 × 44.2 × 59 mm.
Net Weight: 34.5 g.
Colour: White.
Housing Material: PC + ABS.
Mounting Options:
Desktop placement.
Wall mounting.
Ceiling installation.
Embedded installation.
Adjustment: 360° rotatable adjustable head with magnetic base.
Application Area: Indoor use only.
Operating Temperature: -10°C to +60°C.
Operating Humidity: 0–90% RH (non-condensing).
Operating Altitude: Below 2000m.
