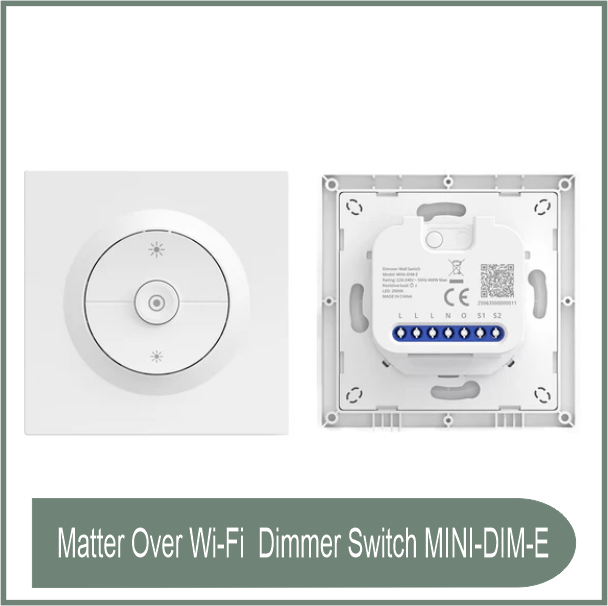

SONOFF Orb-DIM Matter Over WiFi Dimmer Wall Switch | MINI-DIM-E
SKU: SON-0172-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Orb-DIM adds intelligent dimming to traditional lighting systems, allowing for brightness adjustments ranging from 0 to 100% with 1% control increments.
It features Matter connectivity, allowing for integration with ecosystems such as Apple Home, Google Home, and Alexa when paired with a compatible Matter controller.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Protocol: Matter over Wi-Fi.
MCU: ESP32-C3.
Rated Voltage: 220–240V AC, 50Hz.
Maximum Resistive Load: 400W.
LED Load Capacity: 200VA.
Dimming Type: Leading-edge & Trailing-edge dimming.
Brightness Control: 0–100% smooth dimming (1% adjustment).
Compatible Loads: Dimmable LED, incandescent, halogen bulbs, and dimmable electronic transformers.
Wireless Connectivity: IEEE 802.11 b/g/n 2.4GHz Wi-Fi.
Smart Home Compatibility: Apple Home, Google Home, Amazon Alexa, Home Assistant (via Matter).
Functions: Real-time power monitoring, schedules, voice control, scene automation.
Safety Features: Overload, overcurrent, and overheat protection.
Operating Temperature: -10°C to 40°C.
Operating Humidity: 5%–95% RH (non-condensing).
Material: PC housing.
Dimensions: 86 × 86 × 33.7mm.
Net Weight: 83g.
Certifications: CE, RoHS.
