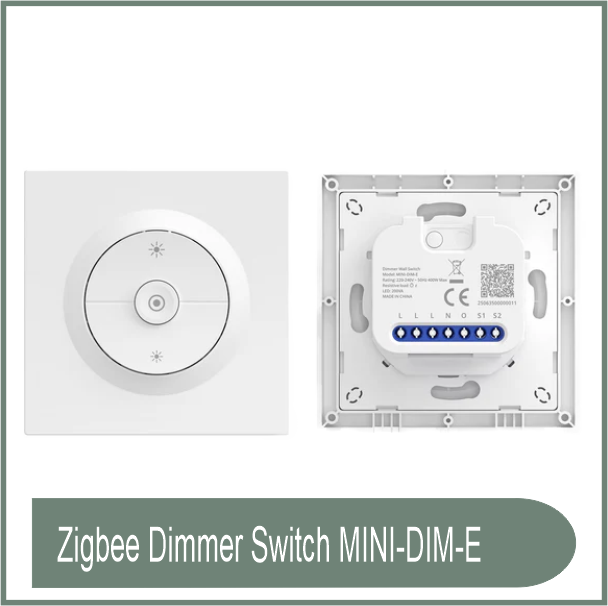

SONOFF Orb-ZBDIM Zigbee Dimmer Wall Switch | MINI-ZBDIM-E
SKU: SON-0173-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Orb-ZBDIM combines a stylish wall switch design with Zigbee smart home technology, allowing users to manage lighting via the eWeLink app, compatible Zigbee gateways, and platforms like Home Assistant and Amazon Alexa.
It offers smooth, flicker-free dimming via automatic and manual calibration, ensuring greater compatibility with various dimmable light sources.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Protocol: Zigbee 3.0.
MCU: EFR32MG21.
Rated Voltage: 220–240V AC, 50Hz.
Maximum Resistive Load: 400W.
LED Load Capacity: 200VA.
Dimming Type: Leading-edge & Trailing-edge dimming.
Brightness Control: 0–100% smooth dimming.
Compatible Loads: Dimmable LED, incandescent, halogen bulbs, and dimmable electronic transformers.
Wireless Connectivity: Zigbee 3.0 (IEEE 802.15.4).
Smart Home Compatibility: Home Assistant, Amazon Alexa, eWeLink, Zigbee hubs.
Functions: Real-time power monitoring, schedules, scene automation, Zigbee signal repeater/router.
Safety Features: Overload, overcurrent, and overheat protection.
Neutral Wire Required: Yes.
Operating Temperature: -10°C to 40°C.
Operating Humidity: 5%–95% RH (non-condensing).
Material: PC housing.
Dimensions: 86 × 86 × 34mm.
Net Weight: 83g.
