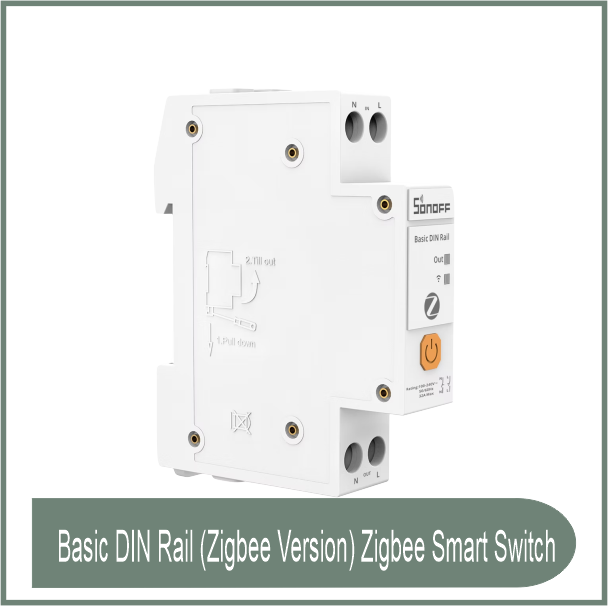

SONOFF Basic DIN Rail Zigbee Smart Switch | BASIC-ZB1GSP
SKU: SON-0181-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF Basic DIN Rail Zigbee Smart Switch is a DIN rail-mounted Zigbee 3.0 smart switch with integrated energy monitoring.
It is intended for intelligent control and management of high-power electrical circuits in residential, commercial, and industrial settings.
Installed directly into ordinary distribution boards with a DIN rail installation, it enables users to remotely switch loads, monitor energy use, and establish smart automations via a Zigbee hub or gateway.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: BASIC-ZB1GSP.
Product Type: Zigbee Smart Switch.
Communication Protocol: Zigbee 3.0.
Supply Voltage: 100–240VAC, 50/60Hz.
Maximum Current: 32A.
Maximum Load: 7680W.
Energy Monitoring: Yes.
Switching Type: Double Pole (Live and Neutral).
Mounting: Standard 35mm DIN Rail.
Dimensions: 84 × 66.5 × 18 mm.
Housing Material: PC Flame Retardant.
Operating Temperature: -15°C to +50°C.
Operating Humidity: 10%–90% RH (non-condensing).
Wire Size: 4mm² to 10mm² copper conductors.
