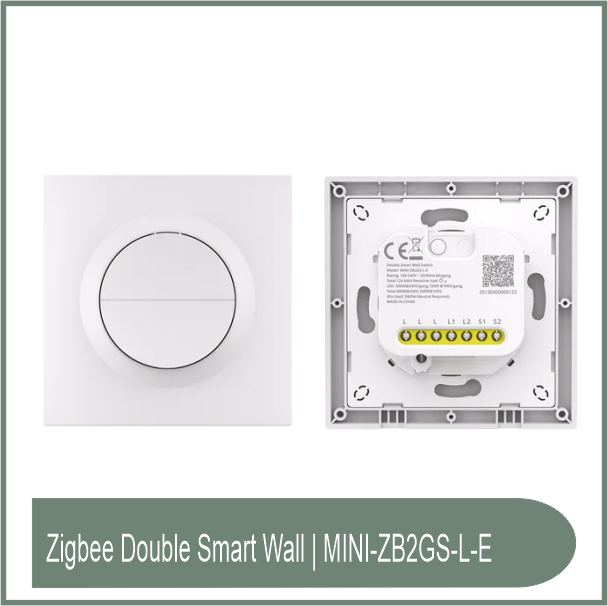

SONOFF Orb-ZBW2L Zigbee Double Smart Wall Switch | MINI-ZB2GS-L-E
SKU: SON-0187-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF Orb-ZBW2L Zigbee Double Smart Wall Switch (MINI-ZB2GS-L-E) is a dual-gang Zigbee 3.0 smart wall switch intended for households without a neutral wire.
It allows for separate management of two lighting circuits while also enabling dependable Zigbee connectivity, smart automation, and voice control without the need for extra bypass components.
The Orb-ZBW2L easily interfaces with SONOFF Zigbee hubs and other compatible Zigbee ecosystems, supporting Zigbee 3.0.
It includes Detach Relay Mode, which allows smart lamps to be powered even when the wall switch is turned off, assuring continuous smart operation.
The switch also supports Zigbee Simple Setup (ZSS) and Zigbee Binding, which enable quick pairing and dependable local control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Zigbee Double Smart Wall Switch.
Model: MINI-ZB2GS-L-E.
Product Series: SONOFF Fusion Series (Orb-ZBW2L).
Number of Gangs: 2 (Dual Channel).
Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4).
MCU: EFR32MG22.
Input Voltage: 110–240V AC, 50/60Hz.
Neutral Wire Required: No.
Rated Current: 8A per channel.
Maximum Combined Load: 12A (Resistive Load).
Maximum LED Load:
300W per channel @ 240V AC.
150W per channel @ 100V AC.
Total: 600W @ 240V AC.
Control: Two independently controlled relay outputs.
Mounting Type: In-wall.
Operating Temperature: -10°C to +40°C.
Housing Material: Flame-retardant Polycarbonate (PC).
Dimensions: 86 × 86 × 33.7 mm.
Certifications: CE, RoHS.
