SONOFF Fusion Series Orb-RBS Matter Over WiFi Smart Roller Shutter Wall Switch | MINI-RBS-E
SKU: SON-0189-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

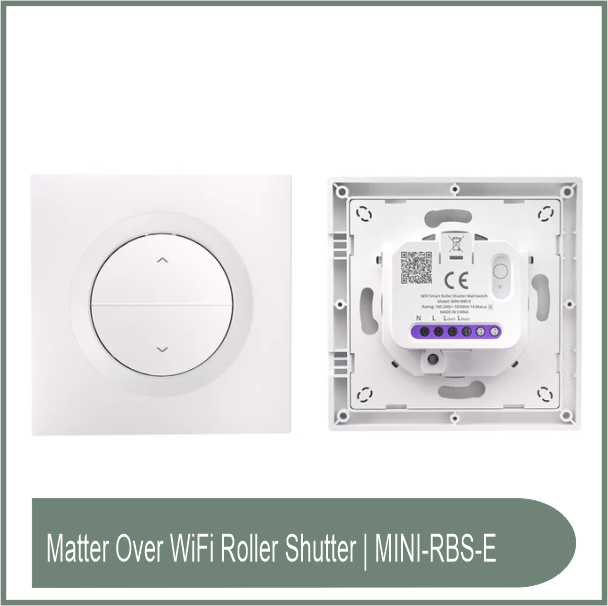

The SONOFF Fusion Series Orb-RBS Matter over Wi-Fi Smart Roller Shutter Wall Switch (MINI-RBS-E) is a smart in-wall controller that works with motorized roller shutters, blinds, curtains, and awnings.
It supports the Matter smart home standard over 2.4 GHz Wi-Fi, allowing for smooth integration with Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant, and other Matter-compatible platforms while remaining independent of a single ecosystem.
The Orb-RBS provides accurate percentage control, letting you to adjust blinds to any desired level, while built-in scheduling and smart scene automation make daily operation simple.
A motor direction reversal capability makes installation easier by allowing the motor direction to be altered in software without rewiring.
The switch requires a neutral wire and is compatible with conventional AC roller shutter motors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Matter over Wi-Fi Smart Roller Shutter Wall Switch.
Model: MINI-RBS-E.
Series: SONOFF Fusion Series (Orb-RBS).
Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n (2.4 GHz).
Smart Home Standard: Matter.
Processor: ESP32.
Input Voltage: 100–240V AC, 50/60Hz.
Maximum Load: 1A (roller shutter motor).
Neutral Wire Required: Yes.
Control Type: Roller shutter / blind motor control.
Position Control: 0–100% adjustable opening.
Motor Direction Reverse: Software configurable.
Scheduling: Yes.
Scene Automation: Yes.
Voice Control: Yes (via Matter-compatible platforms).
Dimensions: 86 × 86 × 34 mm.
Weight: 84.7 g.
Housing Material: Flame-retardant Polycarbonate (PC).
