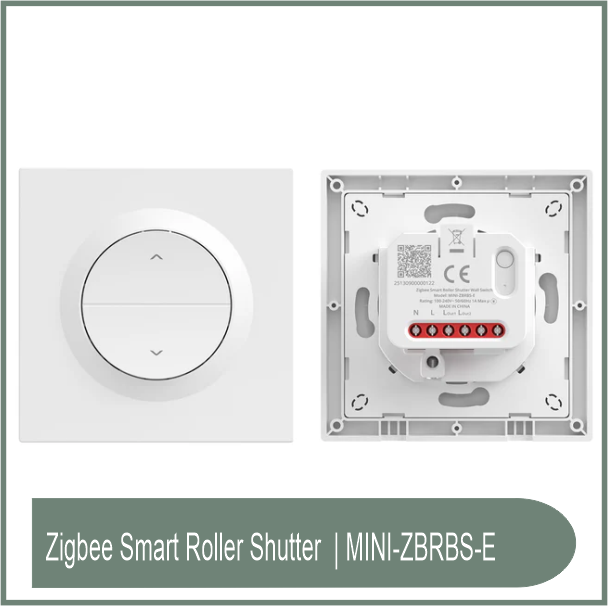

SONOFF Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch | MINI-ZBRBS-E
SKU: SON-0191-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch (MINI-ZBRBS-E) is an intelligent in-wall controller that automates motorized roller shutters, blinds, curtains, and projection screens.
It uses the Zigbee 3.0 protocol to provide fast, reliable, and low-latency communication while working smoothly with SONOFF Zigbee hubs and third-party Zigbee systems such as Home Assistant (ZHA and Zigbee2MQTT).
The Orb-ZBRBS offers accurate percentage positioning, allowing you to open and close blinds to any desired location.
It also supports scheduled operation, smart scene automation, and voice control via compatible smart home ecosystems.
The built-in motor direction reverse function allows you to rectify motor direction without rewiring, and the integrated Zigbee router expands and improves your Zigbee mesh network. A neutral wire is required during installation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Zigbee Smart Roller Shutter Wall Switch.
Model: MINI-ZBRBS-E.
Series: SONOFF Fusion Series (Orb-ZBRBS).
Wireless Protocol: Zigbee 3.0.
Input Voltage: 100–240V AC, 50/60Hz.
Maximum Motor Load: 1A.
Neutral Wire Required: Yes.
Control Type: Roller shutter / blind motor control.
Position Control: 0–100% adjustable opening.
Motor Direction Reverse: Software configurable.
Scheduling: Yes.
Smart Scenes: Supported.
Voice Control: Supported via compatible Zigbee platforms.
MCU: EFR32MG21.
Dimensions: 86 × 86 × 34 mm.
Weight: 84.1 g.
Housing Material: Flame-retardant Polycarbonate (PC).
Recommended Wire Size: 18–14 AWG solid or stranded copper.
Operating Temperature: -10°C to +40°C.
Operating Humidity: 5–95% RH (non-condensing).
Certifications: CE, RoHS.
