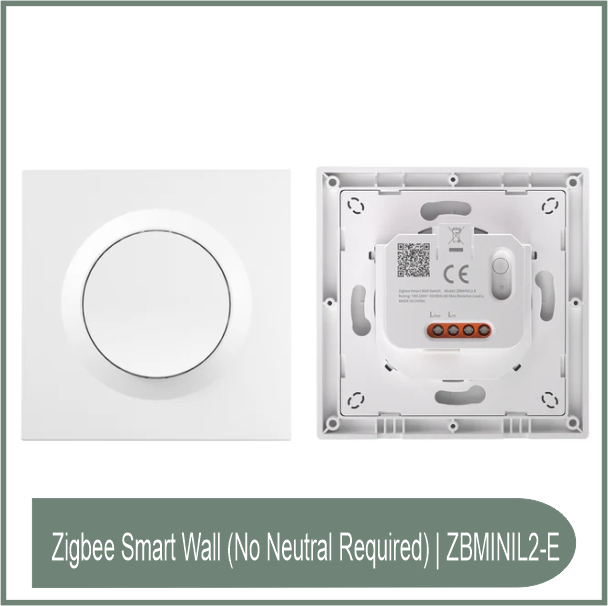

SONOFF Fusion Series Orb-ZBW1L Zigbee Smart Wall Switch (No Neutral Required) | ZBMINIL2-E
SKU: SON-0192-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF Fusion Series Orb-ZBW1L Zigbee Smart Wall Switch (ZBMINIL2-E) is a 1-gang Zigbee 3.0 smart wall switch that is specifically intended for installations without a neutral wire, making it an excellent choice for older houses.
It offers smart lighting management while keeping the appearance and functionality of a traditional wall switch, reducing the need for extensive electrical rewiring.
The Orb-ZBW1L is Zigbee 3.0 compliant and works flawlessly with SONOFF Zigbee hubs and a variety of other Zigbee ecosystems.
It supports remote control, scheduling, timers, smart scenes, and voice control via smart home platforms.
The switch is designed for low-power LED lighting, enabling loads as low as 3W without requiring an anti-flicker module.
It also works with Home Assistant through ZHA or Zigbee2MQTT for enhanced automation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Zigbee Smart Wall Switch (No Neutral Required).
Model: ZBMINIL2-E.
Product Name: Orb-ZBW1L.
Series: SONOFF Fusion Series.
Number of Gangs: 1.
Wireless Protocol: Zigbee 3.0.
MCU: EFR32MG22.
Input Voltage: 100–240V AC, 50/60Hz.
Maximum Resistive Load: 6A.
Maximum LED Load:
150W @ 100V AC.
300W @ 240V AC.
Maximum Load: 1440W.
Minimum Load: 3W.
Neutral Wire Required: No.
Control Functions: Remote control, schedules, countdown timers, smart scenes.
Voice Control: Supported via compatible Zigbee platforms.
Dimensions: 86 × 86 × 35.8 mm.
Weight: 80 g.
Housing Material: Flame-retardant Polycarbonate (PC).
Operating Temperature: -10°C to +40°C.
Certifications: CE, RoHS.
