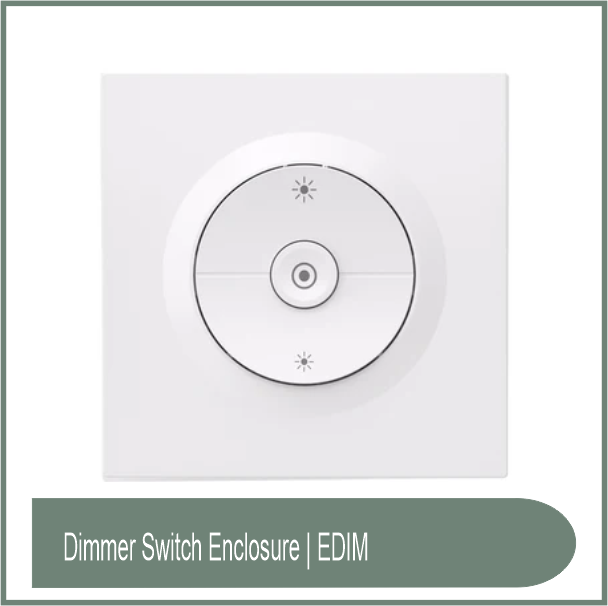

SONOFF Fusion Series Dimmer Switch Enclosure | EDIM
SKU: SON-0197-F06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SONOFF Fusion Series Dimmer Switch Enclosure (EDIM) is a high-end wall switch enclosure specifically built for the SONOFF MINI-DIM and MINI-ZBDIM smart dimmer modules.
It offers a sleek, modern wall-mounted solution that simplifies installation and protects the smart dimmer module within a sturdy enclosure.
The thin 21 mm depth allows for installation in conventional 86-type square and Ø60 mm European circular wall boxes, making it suitable for both retrofit and new smart home systems.
The EDIM is made of fireproof and scratch-resistant polycarbonate (PC), ensuring long-term endurance.
Its clip-on installation style speeds up wiring and secures the enclosure in place, while the ergonomic micro-arc button allows for smooth and pleasant use.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Name: SONOFF Fusion Series Dimmer Switch Enclosure.
Model: EDIM.
Series: Fusion Series.
Product Type: Dimmer Wall Switch Enclosure.
Colour: White.
Housing Material: Fireproof, Scratch-Resistant Polycarbonate (PC).
Installation Type: Flush Wall Mount.
Compatible Wall Boxes:
Standard 86-type square wall box.
Ø60 mm European round wall box.
Internal Installation Depth: 21 mm.
Overall Dimensions: 86 × 86 × 34 mm.
Net Weight: 32.6 g.
Compatible Products:
SONOFF MINI-DIM.
SONOFF MINI-ZBDIM.
Installation Method: Clip-on Design.
Certifications: CE, RoHS.
