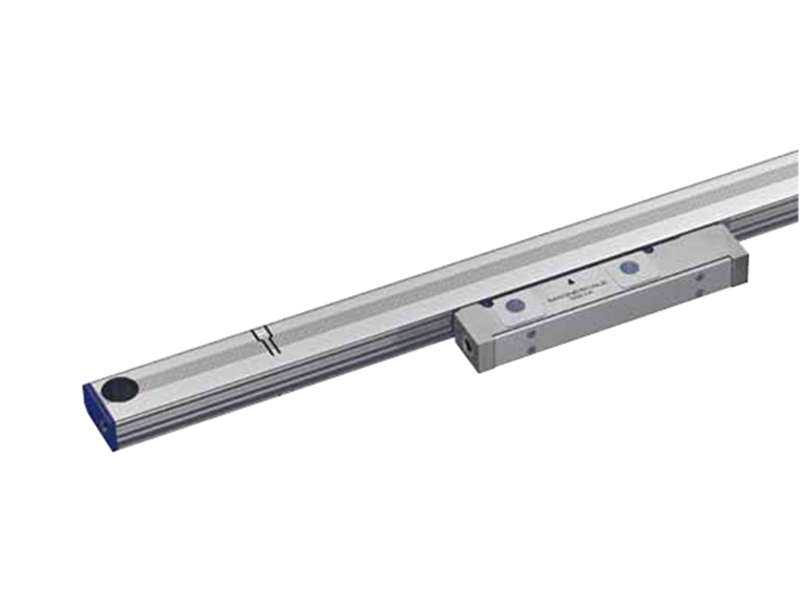

Magnescale Absolute Linear Encoder (Slim Type SR27A)
SKU: SR27A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Brief description of the Slim Type SR27A Absolute Linear Encoder:
Magnetic system permits usage even in situations with condensation, oil, and other unfavourable conditions.
Enables direct connection utilizing the protocol of each supporting manufacturer without the need for an amplifier.
Dual head layout lessens the effect of axial runout.
96mm diameter through-hole offers greater flexibility in design and mounting.
Buy currently uses Select Automation shop pricing and checkout.
Slim type SR27A:
Output signal: Absolute serial bidirectional signal. Compliant with EIA-485 / DRIVE-CLiQ.
Effective length: 70 to 2,040 mm
Maximum resolution: 0.01imp
Accuracy: (3+3L/1,000) imp-p or (5+5L/1,000) imp-p L: Effective length(mm)
Maximum response speed: 200m/min
Protective design grade: IP54 (Air purge not included) IP65 (Air purge included)
