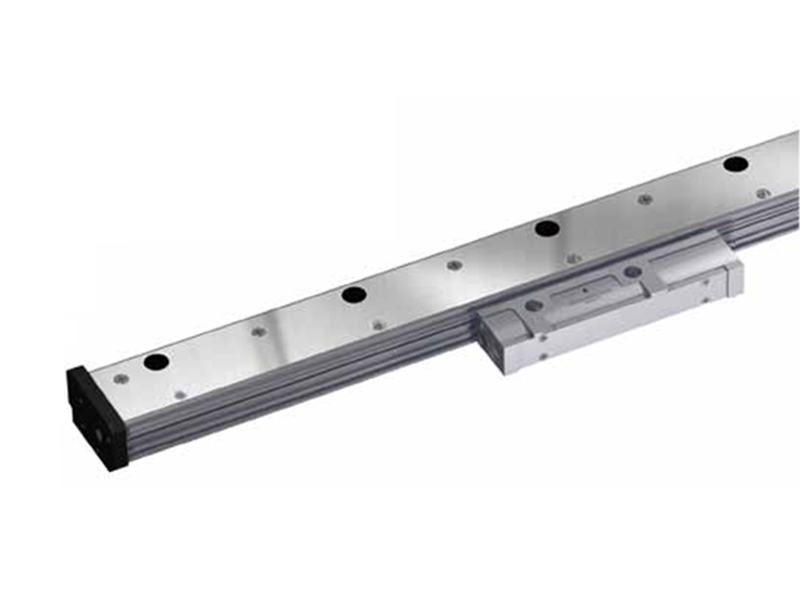

Magnescale Absolute Linear Encoder (Robust Type SR67A)
SKU: SR67A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
High stiffness offers resistance against vibration and stress:
Magnetic system permits operation in situations with oil, moisture, and other unfavourable conditions.
Allows direct communication via each supporting manufacturer's protocol without the need for an amplifier.
Iron has the same thermal expansion.
Buy currently uses Select Automation shop pricing and checkout.
Robust type SR67A:
Output signal: Absolute serial bidirectional signal Compliant with EIA-485 / DRIVE-CLiQ.
Effective length: 140 to 3,640 mm
Maximum resolution: 0.01μm
Accuracy: (3+3L/1,000) amp-p or (5+5L/1,000) amp-p L: Effective length(mm)
Maximum response speed: 200m/min
Protective design grade: IP54 (Air purge not included) IP65 (Air purge included)
