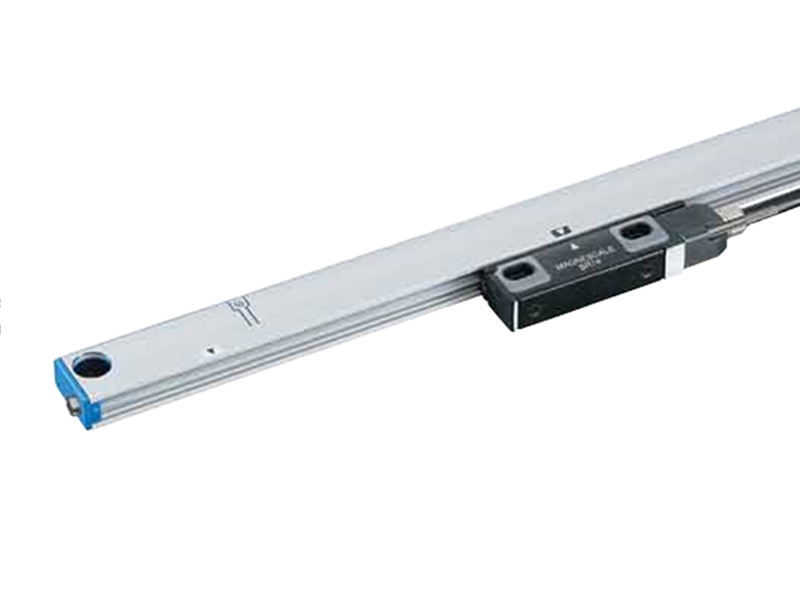

Magnescale Incremental Linear Encoder (Slim Type SR74)
SKU: SR74
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SR74 Incremental Linear Encoder Slim Type can be briefly described as follows:
Its magnetic system enables usage even in situations with condensation, oil, and other unfavourable conditions.
Its high rigidity resists shock and vibration.
Allows direct connection without the need for an amplifier by utilizing each supporting.
manufacturer's protocol.
Iron has the same thermal expansion.
Buy currently uses Select Automation shop pricing and checkout.
Slim type SR74:
Output signal: A/B/Reference point Line driver signal Compliant with EIA-422.
Effective length: 70 to 2,040 mm
Maximum resolution: 0.05μm
Accuracy: (3+3L/1,000) amp-p or (5+5L/1,000) amp-p L: Effective length(mm)
Maximum response speed: 50m/min (Resolution: 0.1 at, Minimum phase difference: at 50 ns).
Protective design grade: IP54 (Air purge not included) IP65 (Air purge included).
