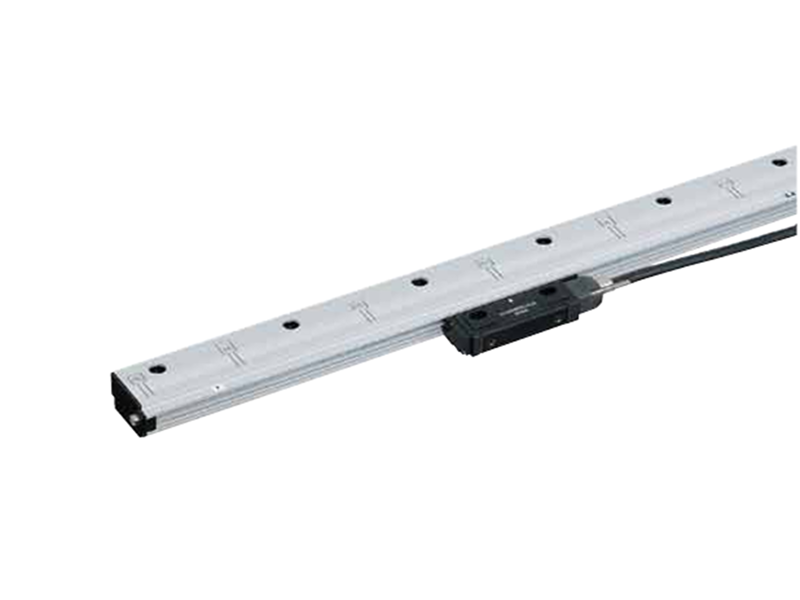

Magnescale Incremental Linear Encoder (Robust Type SR84)
SKU: SR84
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A brief synopsis of the robust type SR84 incremental linear encoder is as follows:
Magnetic system permits operation even in situations with condensation, oil, and other unfavourable conditions.
Enables direct communication utilizing the protocol of each supporting manufacturer without the need for an amplifier.
Dual head layout lessens the effect of axial runout.
96mm diameter through-hole offers greater flexibility in design and mounting.
Buy currently uses Select Automation shop pricing and checkout.
Robust type SR84:
Output signal: A/B/Reference point Line driver signal Compliant with EIA-422.
Effective length: 140 to 3,040 mm.
Maximum resolution: 0.05μm.
Accuracy: (3+3L/1,000) amp-p or (5+5L/1,000) amp-p L: Effective length(mm).
Maximum response speed: 50m/min (Resolution: 0.1 μm, Minimum phase difference: at 50 ns).
Protective design grade: IP54 (Air purge not included) IP65 (Air purge included).
