18.5 kW 42A FLC Basic Economic Type Built-in Bypass 200 - 575VAC Supply 24V
SKU: SSCe-042-V6-C2 42A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A soft starter is a practical and affordable way to ensure the motor runs steadily.
With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Binary inputs: 2
Relay outputs: 2.
Depth (mm): 165
Width (mm): 98
Height (mm): 201
Power (kW): 18
Supply voltage (VAC): 200-575
3-phase
Supply voltage frequency (Hz): 45-66
Output current (A): 42
Operating temperature (°C): -10 to 60
IP protection level: 20

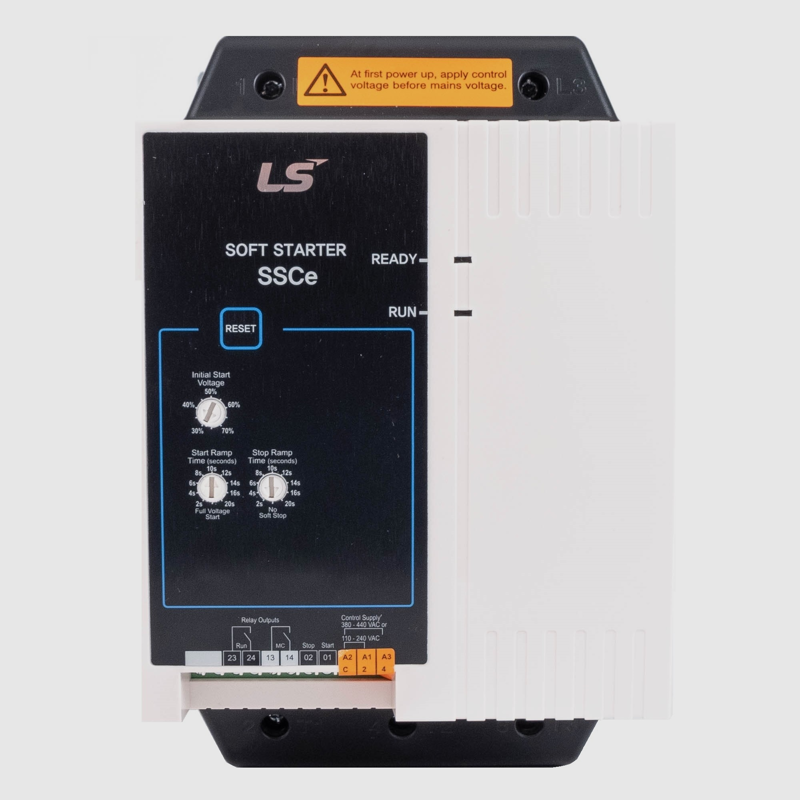

18.5kW Soft Starter
Economic
Analog Ctrl
42A FLC
Built-in Bypass Contactor
Control Voltage 24Vac/dc.
Analog Settings
Without Motor Protection
Features:
Ultra compact design (Built-in bypass)
IEC/UL/KC Standards
Easy operation & control
Allows for fast diagnosis of a trip via two LEDs.
Suitable for mounting in a switchboard.
