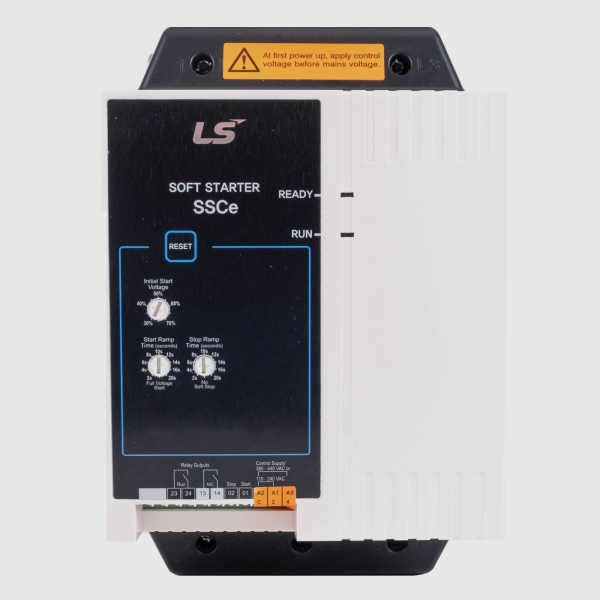

55 kW 100A FLC Basic Economic Built-in Bypass 200 - 440VAC Supply 110-440V
SKU: SSCe-100-V4-C1-100A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power: Normal duty: 55 kW 100A 400 VAC, Heavy Duty: 45 kW 96A 400 VAC.
Main voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%).
Rated Output Current: 100 A.
Control Voltage: 110~240 VAC (+10%/-15%).
Start current: 4 x Inom.
Start time: 1-20s (Adjustable).
Operating temperature: -10°C to +60°C.
Built-in bypass.
Without Motor Protection.
AC53b 4-6:594.
<1000m 40°C.
Size: 145 x 215 x 193 mm (W x H x D).
Weight: 3.8 kg.
IP20.
Features:
Ultra compact design (Built-in bypass).
IEC/UL/KC Standards.
Easy operation & control.
Allows for fast diagnosis of a trip via two LEDs.
Suitable for mounting in a switchboard.
