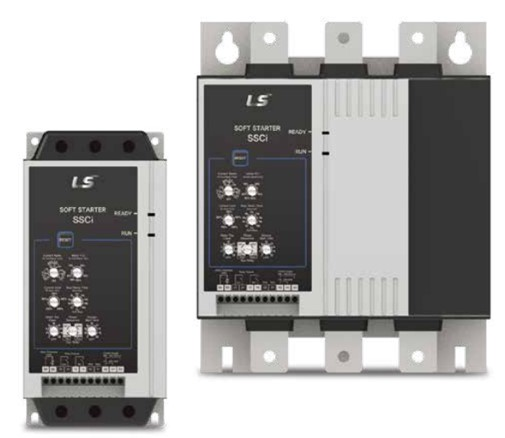

15 kW 34A FLC Basic Type Motor Protection Bypass 200 - 575VAC 200 - 440V
SKU: SSCi-034-V6-C1 34A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A soft starter is a practical and affordable way to ensure the motor runs steadily.
With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rated current: 34 A
Input voltage: 200 - 575 VAC.
Protection class: IP20, 15 kW,
Installation height: <1000 m
Dimensions (H x W x D): 201 x 98 x 165 mm
Weight: 2.2kg
15kW Soft Starter
Standard
Analog Ctrl
34A FLC
Built-in Bypass Contactor
Control Voltage 110 ~ 240 & 380 ~ 440Vac
Analog Settings
With Motor Protection
Features:
Ultra compact design (Built-in bypass)
IEC/UL/KC Standards
Built-in motor protection
Allows for fast diagnosis of a trip via two LEDs.
Simple panel configuration & cost-saving
Easy operation & control
