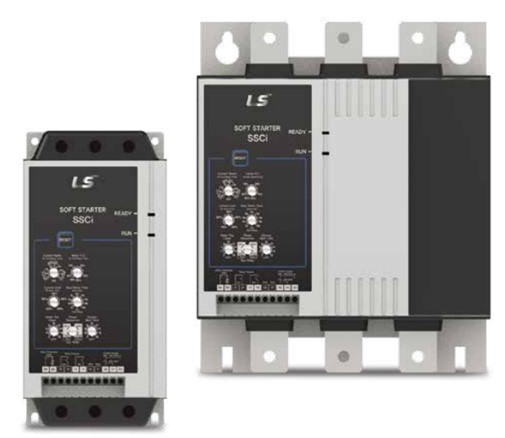

18.5 kW 42A FLC Basic Type Motor Protection Bypass 200 - 575VAC 200 - 440V
SKU: SSCi-042-V6-C1 42A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A soft starter is a practical and affordable way to ensure the motor runs steadily.
With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rated voltage (main circuit): 3x200~575VAC (+ 10%/ - 15%)
Control voltage: 110-240VAC (+ 10%/ - 15%); 380-440VAC (+ 10%/ - 15%)
Rated power for 400VAC: 18kW
Rated current: 42A.
Enclosure rating: IP20
18.5kW Soft Starter
Standard
Analog Ctrl
42A FLC
Built-in Bypass Contactor
Input Voltage 200 ~ 575Vac
Control Voltage 110 ~ 240 & 380 ~ 440Vac
Analog Settings
With Motor Protection
Features:
Ultra compact design (Built-in bypass)
IEC/UL/KC Standards
Built-in motor protection
Allows for fast diagnosis of a trip via two LEDs.
Simple panel configuration & cost-saving
Easy operation & control
