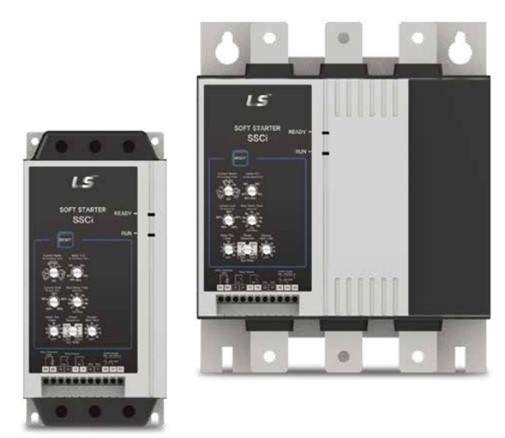

90 kW 170A FLC Basic Type, Motor Protection, Bypass, 200 - 575VAC Supply, 200 - 440V
SKU: SSCi-170-V6-C1 170A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A soft starter is a practical and affordable way to ensure the motor runs steadily.
With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power: Normal duty: 90 kW 170A 400 VAC, Heavy Duty: 75 kW 142A 400 VAC.
Main Voltage: 200 ~ 575 VAC (+10/-15%)
Rated Output Current: 170 A
Control supply: 110~240 VAC (+10%/-15%)
Start current: 4 x Inom.
Start time: 1-20s (Adjustable)
Operating temperature: -10°C to +60°C
Size: 200 x 240 x 214 mm (W x H x D)
Protection class: IP00
90kW Soft Starter
Standard
Analog Ctrl
170A FLC
Built-in Bypass Contactor
Analog Settings
With Motor Protection
Features:
Ultra compact design (Built-in bypass)
IEC/UL/KC Standards
Built-in motor protection
Allows for fast diagnosis of a trip via two LEDs.
Simple panel configuration & cost-saving
Easy operation & control
