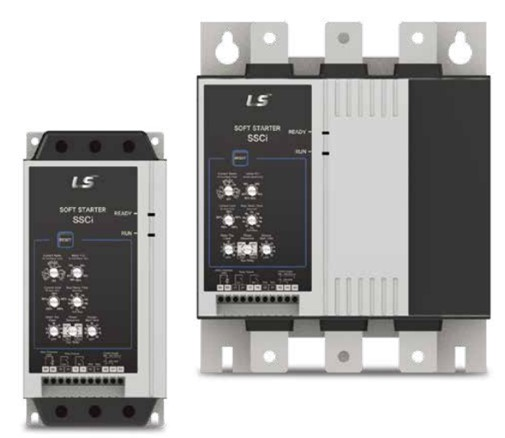

90 kW 170A FLC Basic Type Motor Protection Bypass 200 - 575VAC 24VAC/DC Control
SKU: SSCi-170-V6-C2 170A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A soft starter is a practical and affordable way to ensure the motor runs steadily.
With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power 90kW
Current 170A (4xFLC,6s)
Voltage 200~575V
Phase controlled 2 phases.
Control voltage 24 VAC/VDC
Size: 214 × 240 × 200 mm
Standard
Analog Ctrl
170A FLC
Built-in Bypass Contactor
Analog Settings
With Motor Protection
Features:
Ultra compact design (Built-in bypass)
IEC/UL/KC Standards
Built-in motor protection
Allows for fast diagnosis of a trip via two LEDs.
Simple panel configuration & cost-saving
Easy operation & control
